Impedance: 50 Ohms, most RF and microwave applications.
Frequency Range: Approximately 2 GHz to 6 GHz.
Attenuation: Around 4-6 dB per 100 feet at 1 GHz.
Return Loss: Generally ≥ 20 dB, indicating good impedance matching and minimal signal reflect Weight: Heavier than smaller cables due to its larger diameter and copper construction.

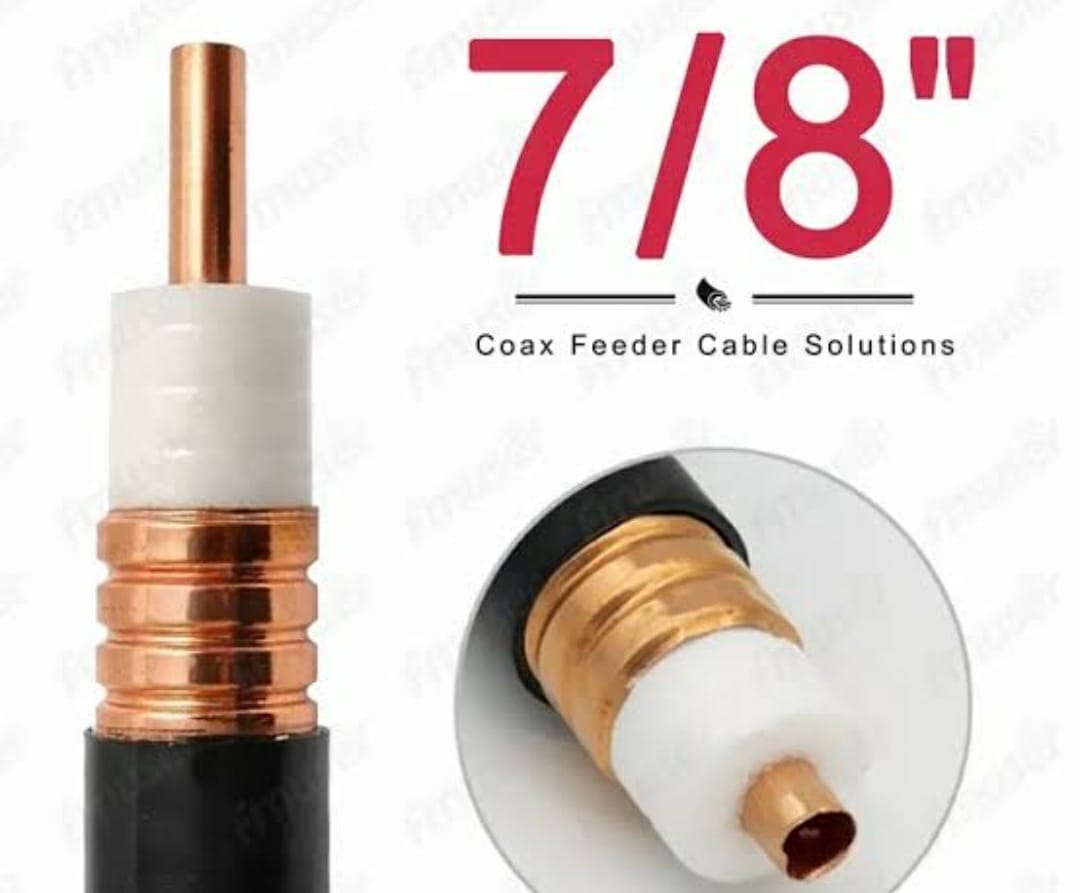

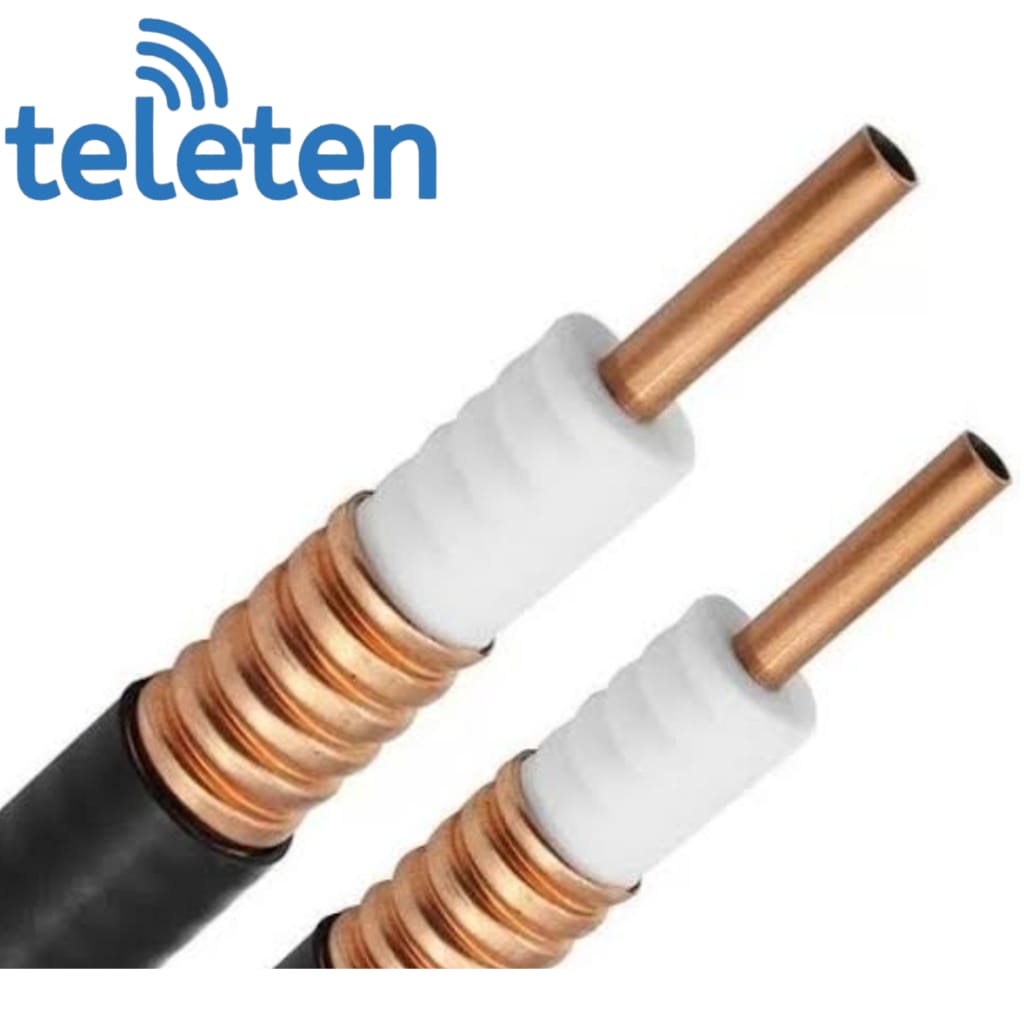

Center Conductor: Made of stranded or solid copper. It provides excellent conductivity and is preferred for high-performance applications due to its low resistance and high thermal conductivity.
Dielectric Insulation: Typically consists of foam polyethylene (PE), PTFE (Teflon), or air-dielectric materials. These materials provide support to the center conductor and low dielectric loss. v
Shielding:
Inner Shield: Often a foil shield (commonly aluminium) designed to protect against electromagnetic interference (EMI) and maintain signal quality.
Outer Shield: A braided shield made of copper or aluminum, providing additional protection against signal leakage and interference.
Outer Jacket: Made from durable materials such as PVC, rubber, or a weather-resistant polymer to protect the cable and ensure flexibility.
Weight
0.1-5 kg
Dimensions
2.22 × 2.22 × 1 cm
