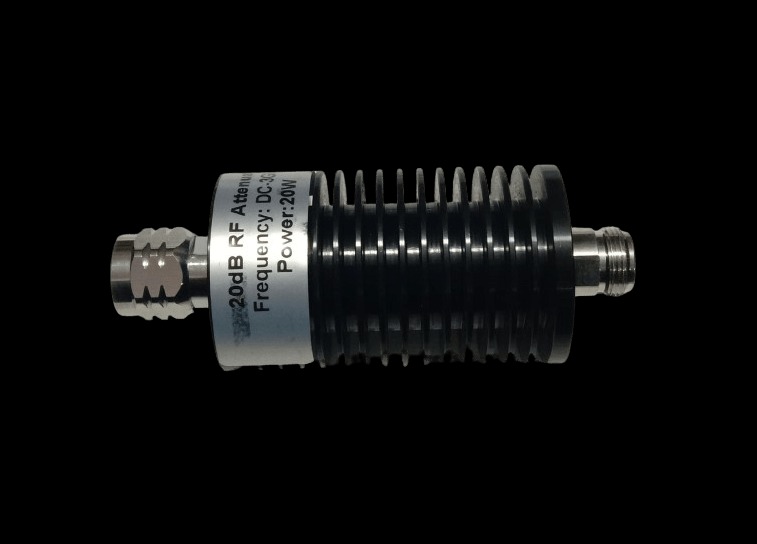

ATT 20DB 20W N M/F 3GHZ

Signal Attenuation: Provides a fixed attenuation of 20 decibels (dB), significantly reducing signal strength.
Power Handling: Capable of handling up to 20 watts of input power, suitable for moderate power RF applications.
Frequency Range: Effective up to 3 gigahertz (GHz), covering a broad range of RF frequencies.
Connectors:
Type: N-type
Configuration: Male (M) on one end, Female (F) on the other end
Design: Engineered to offer reliable performance with minimal signal loss and effective attenuation in high-power and high-frequency environments.
Specifications:
Attenuation: 20 dB (decibels)
Maximum Power Handling: 20 watts (W)
Frequency Range: Up to 3 gigahertz (GHz)
Connectors:
Type: N-type
Configuration: Male (M) on one end, Female (F) on the other end
Impedance: Typically 50 ohms (Ω), which is standard for RF systems to ensure proper impedance matching and minimize reflections.
Return Loss: Generally excellent, often better than 20 dB, to ensure minimal signal reflection and effective attenuation.
Temperature Range: Typically operates within a standard temperature range of -20°C to +75°C, though specific ranges may vary by manufacturer.
Construction: Constructed from high-quality materials to handle the specified power levels and ensure consistent performance in demanding conditions.
Applications:
High-Power RF Testing: Ideal for use in laboratory and field testing environments where significant attenuation is required to protect sensitive equipment and manage high-power signals.
Communication Systems: Useful in RF communication systems operating up to 3 GHz, providing precise signal control and system protection.
Signal Conditioning: Helps in adjusting and managing signal levels in high-power RF applications to meet specific requirements.
Broadcasting: Suitable for broadcasting systems where substantial signal attenuation is necessary to maintain signal integrity and performance.
The ATT 20DB 20W N M/F 3GHZ attenuator is a robust and reliable component designed to manage high-power RF signals, offering significant attenuation while ensuring durable performance in demanding high-frequency environments.
