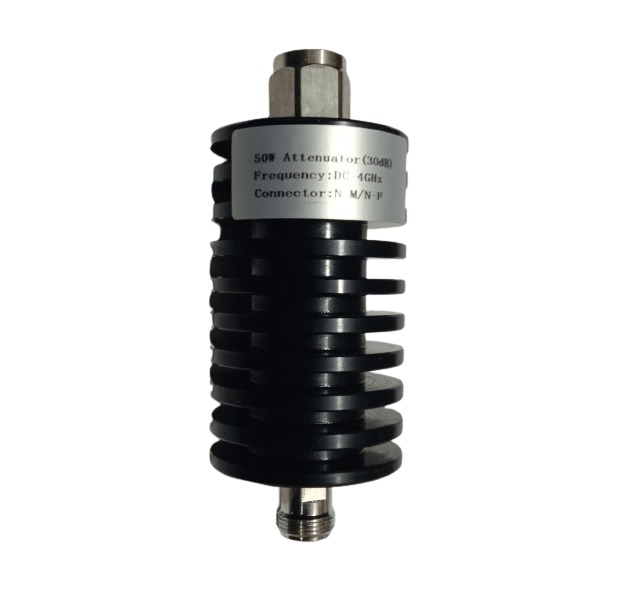

ATT 30DB 50W N M/F 3GHZ

Signal Attenuation: Provides a fixed attenuation of 30 decibels (dB), resulting in substantial signal reduction.
Power Handling: Rated to handle up to 50 watts of input power, making it suitable for high-power RF applications.
Frequency Range: Effective up to 3 gigahertz (GHz), covering a wide range of RF frequencies.
Connectors:
Type: N-type
Configuration: Male (M) on one end, Female (F) on the other end
Design: Built for durability and reliable performance with minimal signal loss and effective attenuation.
Specifications:
Attenuation: 30 dB (decibels)
Maximum Power Handling: 50 watts (W)
Frequency Range: Up to 3 gigahertz (GHz)
Connectors:
Type: N-type
Configuration: Male (M) on one end, Female (F) on the other end
Impedance: Typically 50 ohms (Ω), ensuring proper impedance matching and minimizing reflections in RF systems.
Return Loss: Typically better than 20 dB, ensuring minimal signal reflection and effective attenuation.
Temperature Range: Generally operates within a standard temperature range of -20°C to +75°C, though specific ranges may vary by manufacturer.
Construction: Constructed from high-quality materials to ensure durability and reliable performance in high-power RF applications.
Applications:
RF Testing: Ideal for laboratory and field testing environments where significant attenuation and high power handling are needed to manage signal levels and protect sensitive equipment.
Signal Conditioning: Useful for applications requiring substantial attenuation and the capacity to handle high power.
Communication Systems: Helps in controlling signal levels in RF communication systems operating up to 3 GHz, ensuring proper system performance and protection.
Broadcasting and Microwave Systems: Suitable for broadcasting and microwave systems where high attenuation and high power handling are necessary to maintain signal integrity and manage high-power signals effectively.
The ATT 30DB 50W N M/F 3GHz attenuator is a robust and high-performance component designed for managing RF signal levels with significant attenuation while handling high power levels effectively, making it ideal for various high-power and high-frequency RF applications.
