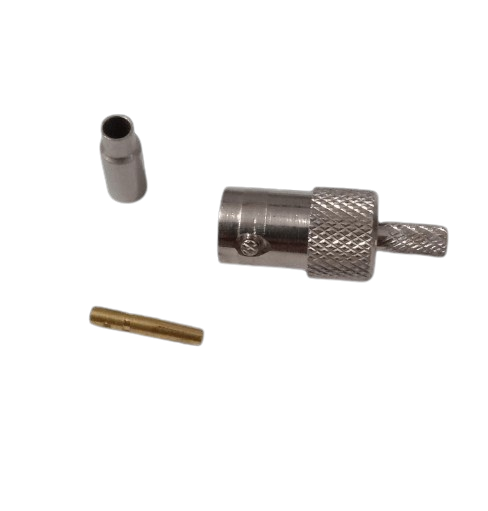

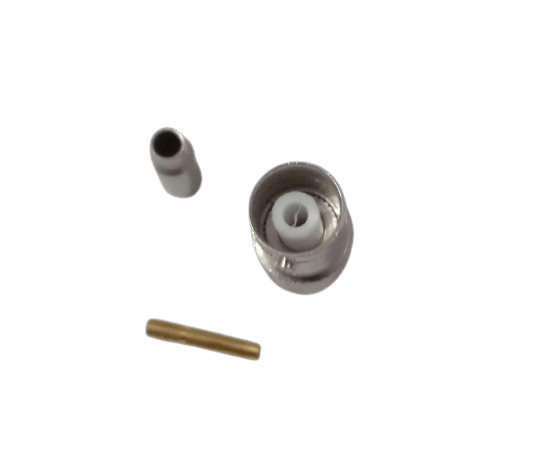

BNC F LMR 100 CRIMP

BNC F LMR 100 CRIMP

₹70

  • LMR-100: This is a specific type of coaxial cable manufactured by Times Microwave Systems. LMR-100 is a low-loss, flexible cable designed for use in applications where good performance and flexibility are required. It is commonly used in RF and microwave applications, as well as in communications systems.
  • Crimp: This term refers to the method used to attach the connector to the cable. Crimp connectors require a crimping tool to secure the connector’s metal parts onto the cable. This provides a strong, reliable connection that is typically more durable than other types of connectors, such as those that use soldering.
  • Key Features:
    Compatibility: The BNC F LMR 100 crimp connector is specifically designed to fit LMR-100 coaxial cable. It ensures a proper electrical connection and mechanical fit for this type of cable.
  • Installation: To install a crimp connector, you strip the insulation from the end of the coaxial cable, insert the cable into the connector, and then use a crimping tool to compress the connector onto the cable. Proper installation is crucial to maintaining signal integrity and minimizing signal loss.
  • Applications: These connectors are used in various RF and communication systems where LMR-100 cable is employed, including in networking, wireless communications, and broadcasting.
  • Advantages:
    Reliability: Crimp connectors, when properly installed, provide a solid and reliable connection that is less prone to loosening or signal degradation compared to soldered connections.
  • Ease of Use: Crimp connectors are generally easier and faster to install compared to other types, especially in field applications.
  • Durability: The crimping method results in a robust connection that can withstand physical stress and environmental factors better than some other connection methods.
  • When working with BNC connectors and LMR-100 cable, ensure you have the correct crimping tool and follow proper installation procedures to achieve the best performance and reliability.
Categories: , Tag:

Electrical: Characteristic Impedance 50 ohm Frequency Range DC-6 GHz VSWR 1.15@DC-4 GHz Dielectric Withstanding Voltage 1000V RMS,50Hz,at sea level Dielectric Resistance 5000M Contact Resistance Center Contact 1m Outer Contact 0.25m.

A BNC F LMR 100 crimp connector is a specific type of BNC connector designed for use with LMR-100 coaxial cable. Here’s a breakdown of what this means:

BNC Connector: As mentioned, this is a type of coaxial RF connector with a bayonet-style locking mechanism. It’s used for connecting coaxial cables in various electronic and communication applications.

F Connector: This typically denotes a female connector, which has a socket that receives the male (plug) connector. In this context, “F” refers to the female BNC connector.

Weight 0.1 kg
