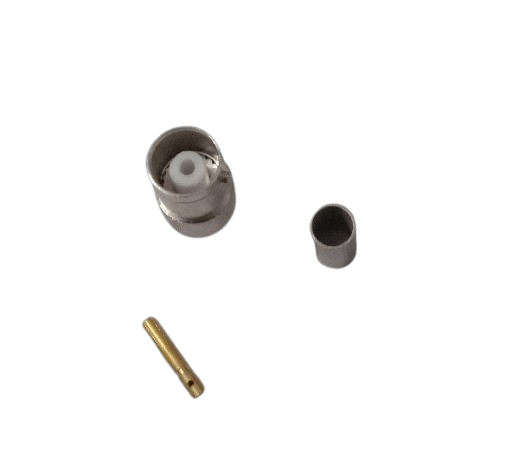

BNC F LMR 200 CRIMP
- LMR-200 Cable: Specifically designed to fit LMR-200 coaxial cables, which are known for their low-loss characteristics and are commonly used in RF and communication systems.
Connector Type: - Female BNC: The connector has a female BNC interface, which means it has an inner pin that fits into a male BNC connector. This type of connector is typically used on the end of a cable that will connect to other BNC male connectors.
Crimping Method: - Crimp Connector: This involves crimping the connector to the cable using a crimp tool. The crimping process ensures a tight, reliable connection and minimizes signal loss.
Design Specifications:
Frequency Range: - Typically supports a wide frequency range suitable for many RF applications. Exact performance can vary by manufacturer but generally covers up to several GHz.
Impedance: - 50 Ohms: Most BNC connectors, including those for LMR-200 cables, are designed for 50-ohm impedance, which is standard for most RF applications.
Material: - Metal Housing: Usually made from durable metal such as brass or stainless steel to ensure reliability and resistance to wear and environmental factors.
Gold or Silver Plating: Often, the inner contacts are plated with gold or silver to improve conductivity and prevent corrosion.
Construction: - Body: The body of the connector is designed to be mounted on the coaxial cable, with provisions for crimping the outer shield and center conductor of the cable to the connector.
Installation:
Preparing the Cable: - Strip the Cable: Carefully strip the insulation from the end of the LMR-200 cable, exposing the center conductor and the outer shield. Make sure not to nick or damage the conductor.
Prepare the Connector: Slide the connector’s crimp ring onto the cable before attaching the connector body.
Attaching the Connector: - Insert the Cable: Insert the prepared cable into the BNC female connector, ensuring the center conductor makes contact with the inner pin of the connector.
Crimp the Connector: Use a crimp tool to crimp the connector’s outer ring onto the cable’s shield. This will secure the connector to the cable and ensure proper electrical contact.
₹50
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
VSWR ≤ 1.15(0~3G)
Frequency Range DC- 3 GHz
Dielectric strength ≥2500V RMS
The BNC Female (BNC F) LMR 200 CRIMP connector is a type of RF (radio frequency) connector designed for use with LMR-200 coaxial cables. It is used to create secure and reliable connections in RF and microwave applications. Here’s a detailed overview of this connector:
Overview of BNC Female LMR 200 Crimp Connector
Design Concept:
BNC Connector: The BNC (Bayonet Neill-Concelman) connector is a popular RF connector known for its bayonet coupling mechanism. This provides a secure connection and is widely used in various communication systems.
Crimp Type: This connector uses a crimping method to attach the connector to the coaxial cable, which is common for creating strong and reliable connections.
| Weight | 0.1 kg |
|---|
