- Connector Types:
- BNC Female:
- Connector Type: Bayonet Neill-Concelman (BNC)
- Gender: Female (with a central socket and surrounding shield that accepts male BNC plugs)
- BNC Female:
- Frequency Range:
- Up to 3 GHz: The adapter is designed to work efficiently at frequencies up to 3 gigahertz, making it suitable for various RF applications within this range.
- Impedance:
- Typically 50 Ohms:
- BNC connectors are usually 50 ohms, which is standard for RF applications. Matching the impedance of your equipment and the adapter is crucial for preventing signal loss and reflection.
- Typically 50 Ohms:
- Mechanical Construction:
- Material: Typically constructed from robust materials such as brass or stainless steel, with plating options like gold or nickel to improve conductivity and resist corrosion.
- Design: Engineered to provide a reliable and secure connection between two BNC Female connectors.
- Applications:
- RF Testing: Useful for connecting RF equipment or devices with BNC Female connectors in test setups.
- Communication Systems: Bridging connections between different RF devices or cables within communication systems.
- Video Systems: Sometimes used in video applications where BNC connections are employed.
- Typical Features:
- Low Signal Loss: Designed to maintain signal integrity and minimize signal degradation between connectors.
- Durability: Built to handle frequent use and ensure long-lasting performance.
Usage Tips:
- Check Impedance Compatibility: Ensure that the adapter’s impedance (usually 50 ohms) matches that of your equipment to prevent signal issues.
- Verify Frequency Range: Make sure the adapter’s frequency range (up to 3 GHz) is adequate for your application. If working with frequencies higher than 3 GHz, consider an adapter rated for those frequencies.
- Ensure Secure Connections: Properly connect the BNC Male plugs into the BNC Female sockets to avoid loose connections which can lead to signal problems.
- Inspect Regularly: Periodically check the adapter for signs of wear or damage to ensure optimal performance.

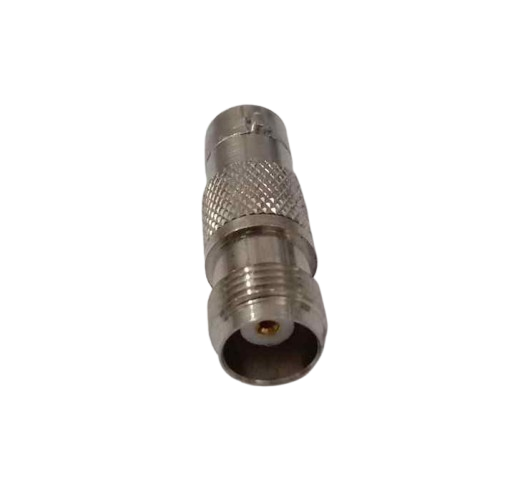

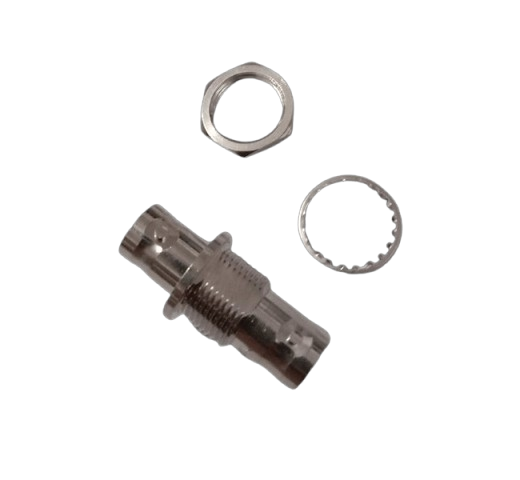

This BNC Female to BNC Female adapter is a practical solution for connecting two BNC cables or devices, particularly in RF testing, communication, and video applications. If “BH” refers to a specific feature or model, consulting the manufacturer’s documentation would provide additional details.
