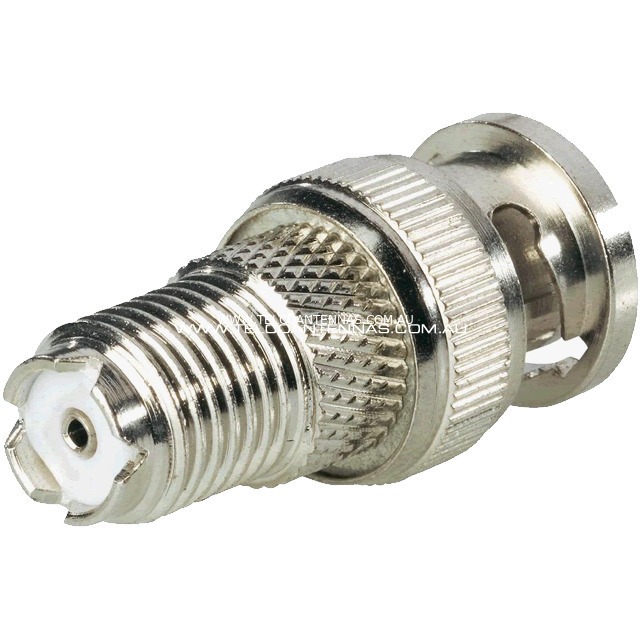

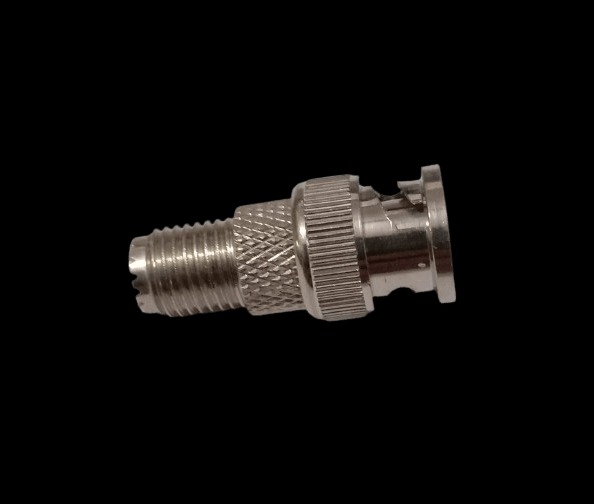

BNC(M) TO MINI UHF (F) ADAPTOR 3GHZ
- Connector Types:
- BNC Male:
- Connector Type: Bayonet Neill-Concelman (BNC)
- Gender: Male (with a pin that fits into a female BNC connector)
- Mini UHF Female:
- Connector Type: Mini UHF
- Gender: Female (with a socket that accepts a male Mini UHF plug)
- BNC Male:
- Frequency Range:
- Up to 3 GHz: The adapter is effective at frequencies up to 3 gigahertz, making it suitable for many RF applications within this range.
- Impedance:
- Typically 50 Ohms:
- BNC Connectors: Usually 50 ohms, used for RF applications.
- Mini UHF Connectors: Often 50 ohms as well, but it’s important to confirm the impedance to ensure compatibility and optimal performance.
- Typically 50 Ohms:
- Mechanical Construction:
- Material: Typically constructed from durable metals such as brass or stainless steel, with gold or nickel plating to enhance conductivity and resist corrosion.
- Design: The adapter is designed to provide a secure and reliable connection between BNC and Mini UHF connectors.
- Applications:
- RF Testing: Connecting equipment with BNC and Mini UHF connectors in testing setups.
- Communication Systems: Bridging connections between devices with different types of RF connectors.
- Antenna Systems: Interfacing antennas with different connector types.
- General RF Applications: Useful in various RF systems where BNC and Mini UHF connectors are used.
- Typical Features:
- Low Signal Loss: Designed to minimize signal degradation between different connector types.
- Durability: Built to withstand frequent use and ensure reliable performance over time.
Usage Tips:
- Verify Impedance Matching: Confirm that both BNC and Mini UHF connectors are 50 ohms to prevent signal reflection and loss. This is crucial for maintaining signal integrity in RF applications.
- Check Frequency Range: Ensure that the adapter’s frequency range (up to 3 GHz) meets the requirements of your specific application. For frequencies above 3 GHz, consider an adapter with a higher frequency rating.
- Ensure Secure Connections: Properly mate the connectors to avoid any loose connections, which can cause signal issues or degradation.
- Inspect for Wear and Tear: Regularly check the adapter for any signs of damage or wear to ensure continued optimal performance.
This BNC Male to Mini UHF Female adapter is particularly useful for connecting devices or cables with these different connector types, making it a versatile tool in RF testing and communication setups.
₹199 ₹149
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
This BNC(M) to Mini UHF(F) adaptor is designed for RF and signal transmission applications, supporting frequencies up to 3GHz. It features a BNC male connector on one end and a Mini UHF female connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |
- BNC Male to Mini UHF Female Adapter: This adapter features a BNC Male connector on one end and a Mini UHF Female connector on the other. The BNC Male connector has a central pin and a surrounding shield that fits into a female BNC socket. The Mini UHF Female connector has a central socket and a surrounding shield that accepts a male Mini UHF plug.
- Frequency Range: 3 GHz. This indicates that the adapter is designed to work effectively up to this frequency, ensuring signal integrity within this range.
Weight | 0.1 kg |
---|
