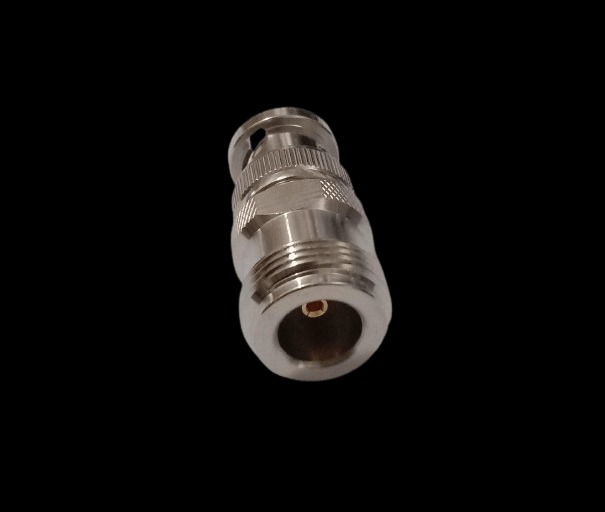

BNC(M) TO N(F) ADAPTOR 3GHZ

1. Connector Types:
   • BNC Male:
     • Connector Type: Bayonet Neill-Concelman (BNC)
     • Gender: Male (with a central pin and surrounding shield)
   • N Female:
     • Connector Type: N-Type
     • Gender: Female (with a central socket and surrounding shield)
2. Frequency Range:
   • Up to 3 GHz: The adapter maintains performance and signal integrity at frequencies up to 3 gigahertz.
3. Impedance:
   • Typically 50 Ohms:
     • BNC Connectors: Often 50 ohms, used in RF applications.
     • N Connectors: Usually 50 ohms as well, but ensure that both ends match your system’s impedance for optimal performance.
4. Mechanical Construction:
   • Material: Generally made from high-quality metals such as brass or stainless steel, with gold or nickel plating to improve conductivity and resist corrosion.
   • Design: Designed to securely connect BNC and N connectors while maintaining signal integrity.
5. Applications:
   • RF Testing: Connecting equipment with BNC and N connectors in test setups.
   • Communication Systems: Bridging connections between different types of RF equipment.
   • Antenna Systems: Interfacing antennas with different connector types.
   • General RF Applications: Where signal connections between BNC and N connectors are needed.
6. Typical Features:
   • Low Signal Loss: Minimizes signal degradation between different connector types.
   • Durability: Built to withstand regular use and provide reliable performance over time.

Usage Tips:

• Ensure Impedance Matching: Both BNC and N connectors are typically 50 ohms, which is essential for RF applications to prevent signal reflection and loss. Confirm the impedance of your system and connectors.
• Verify Frequency Range: While this adapter is rated up to 3 GHz, ensure this meets the requirements of your application. For frequencies above 3 GHz, a different adapter might be necessary.
• Secure Connections: Make sure both connectors are properly mated to avoid any loose connections which can cause signal issues.
• Inspect for Wear: Regularly check the adapter for any signs of wear or damage to ensure continued performance and reliability.

This BNC Male to N Female adapter is particularly useful for connecting devices with different types of RF connectors, making it a versatile component in many RF and communication systems.
