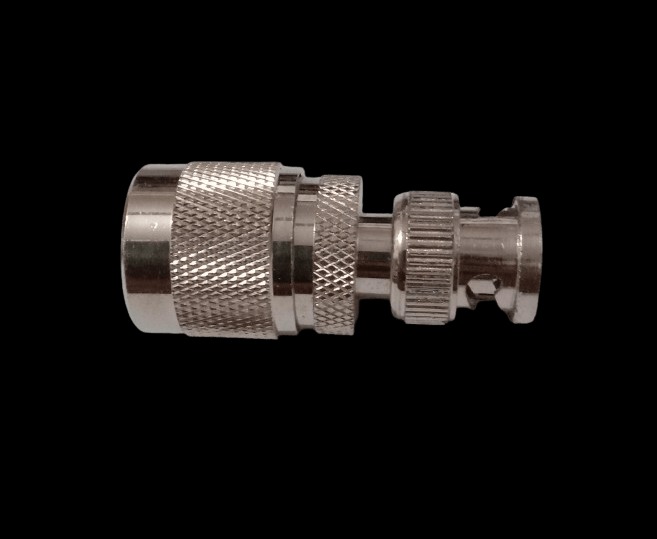

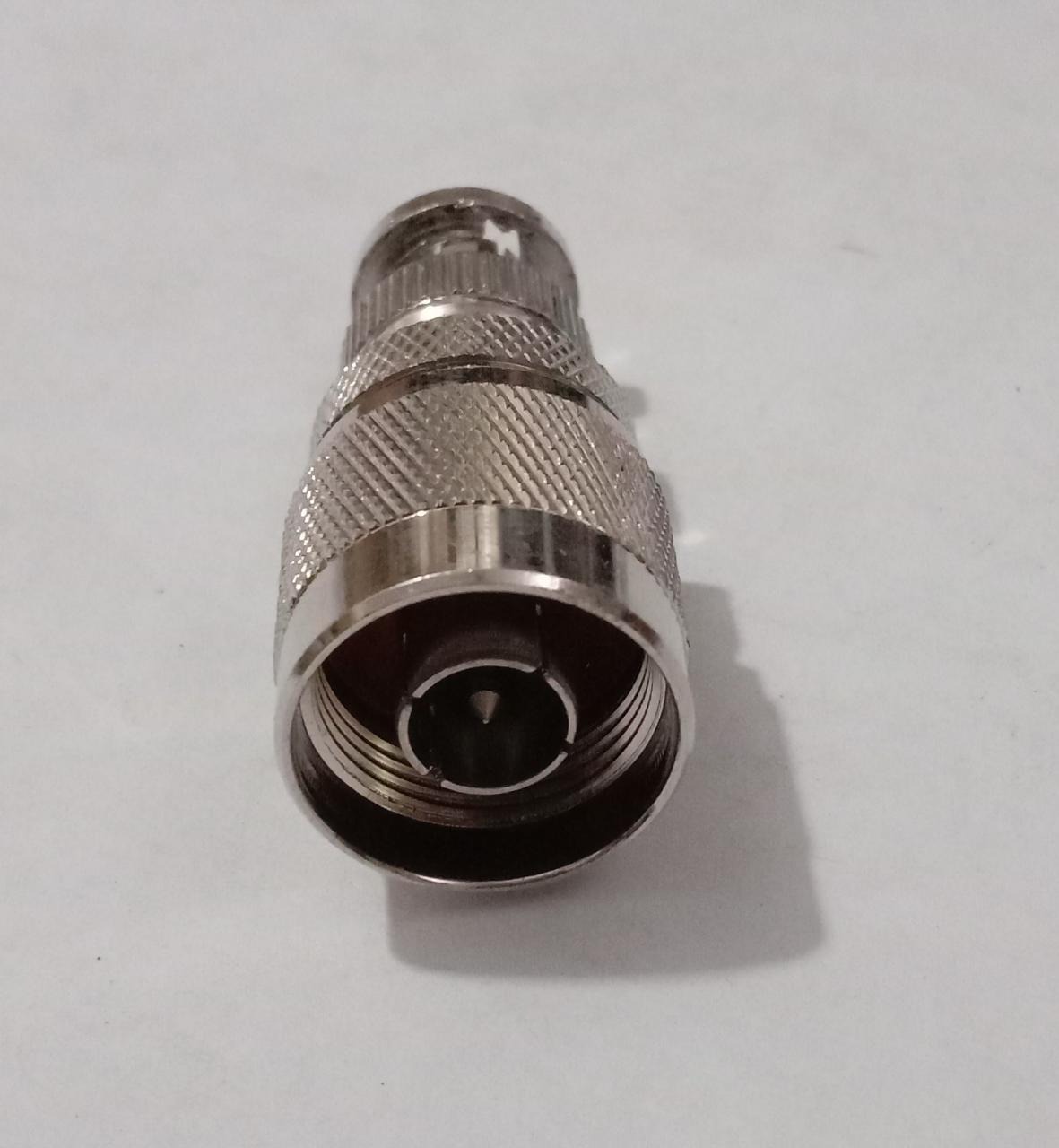

BNC(M) TO N(M) ADAPTOR 3GHZ

Specifications:

1. Connector Types:
   • BNC Male:
     • Connector Type: Bayonet Neill-Concelman (BNC)
     • Gender: Male (with a central pin and surrounding shield)
   • N Male:
     • Connector Type: N-Type
     • Gender: Male (with a central pin and surrounding shield)
2. Frequency Range:
   • Up to 3 GHz: The adapter is designed to perform reliably at frequencies up to 3 gigahertz, suitable for many RF applications within this range.
3. Impedance:
   • Typically 50 Ohms:
     • BNC Connectors: Generally 50 ohms, commonly used in RF applications.
     • N Connectors: Usually 50 ohms for RF applications. It’s crucial to ensure impedance matching between the adapter and your system to prevent signal reflection and loss.
4. Mechanical Construction:
   • Material: Typically constructed from high-quality metals such as brass or stainless steel, with plating options like gold or nickel to enhance conductivity and resist corrosion.
   • Design: Designed to provide a secure and reliable connection between BNC Male and N Male connectors, maintaining signal integrity.
5. Applications:
   • RF Testing: Connecting RF equipment or devices with BNC and N connectors in test setups.
   • Communication Systems: Bridging connections between devices or cables with different RF connectors.
   • Antenna Systems: Connecting antennas or other components with BNC and N interfaces.
   • General RF Applications: Where a transition between BNC and N connectors is needed.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between different connector types.
   • Durability: Built to withstand frequent use and provide reliable performance over time.
