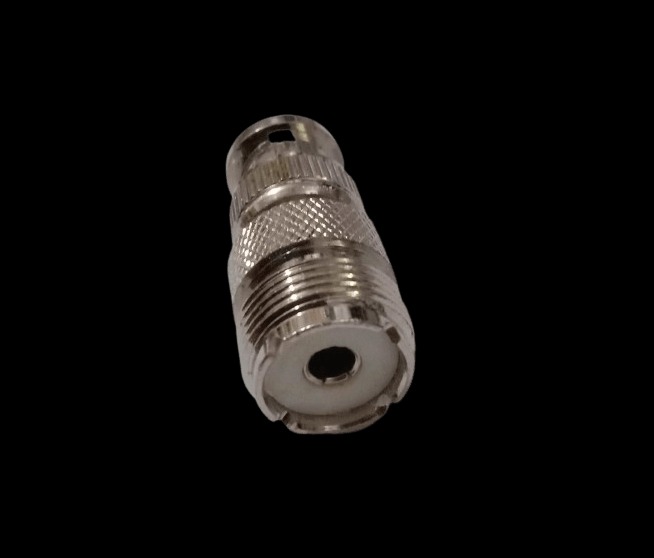

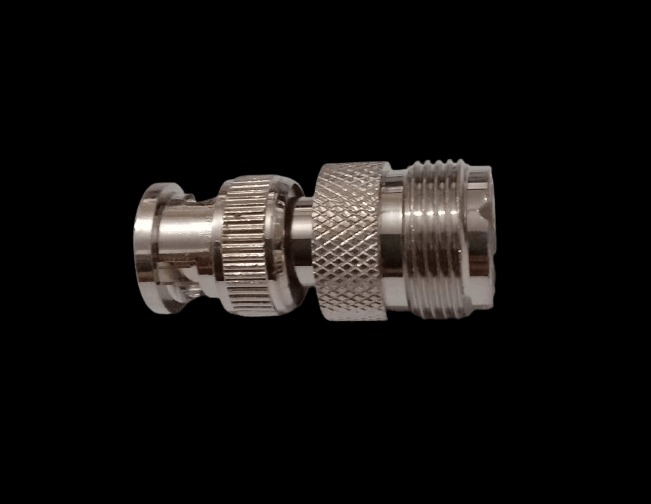

BNC(M) TO UHF(F) ADAPTOR 3GHZ

Specifications:

  1. Connector Types:
    • BNC Male:
      • Connector Type: Bayonet Neill-Concelman (BNC)
      • Gender: Male (with a central pin and surrounding shield)
    • UHF Female:
      • Connector Type: Ultra High Frequency (UHF)
      • Gender: Female (with a central socket and surrounding shield)
  2. Frequency Range:
    • Up to 3 GHz: The adapter is designed to work efficiently at frequencies up to 3 gigahertz, ensuring reliable signal transmission and minimal signal degradation.
  3. Impedance:
    • Typically 50 Ohms:
      • BNC Connectors: Usually 50 ohms, commonly used in RF applications.
      • UHF Connectors: Can be either 50 ohms or 75 ohms. For RF applications, ensure the UHF connector is 50 ohms to match the BNC connector and prevent signal issues.
  4. Mechanical Construction:
    • Material: Typically made from high-quality metals such as brass or stainless steel, with plating options like gold or nickel to enhance conductivity and resist corrosion.
    • Design: Engineered to provide a secure and reliable connection between BNC Male and UHF Female connectors, maintaining signal integrity.
  5. Applications:
    • RF Testing: Useful for connecting RF equipment with BNC and UHF connectors in test setups.
    • Communication Systems: Bridging connections between devices or cables with different RF connectors.
    • Antenna Systems: Connecting antennas or other components with BNC and UHF interfaces.
    • General RF Applications: Where a transition between BNC and UHF connectors is needed.
  6. Typical Features:
    • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between different connector types.
    • Durability: Built to handle frequent connections and disconnections, ensuring long-lasting performance.

160

âš¡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available

💰 Lowest Prices

The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

This BNC(M) to UHF(F) adaptor is designed for RF and signal transmission applications, supporting frequencies up to 3GHz. It features a BNC male connector on one end and a UHF female connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |

  • BNC Male to UHF Female Adapter: This adapter features a BNC Male connector on one end and a UHF Female connector on the other end. The BNC Male connector has a central pin and a surrounding metal shield, while the UHF Female connector has a central socket and a surrounding metal shield. This type of adapter is used to connect devices or cables with BNC and UHF connectors.
  • Frequency Range: 3 GHz. This indicates that the adapter is designed to operate effectively up to this frequency, ensuring that signal integrity is maintained within this range.
Weight 0.1 kg
