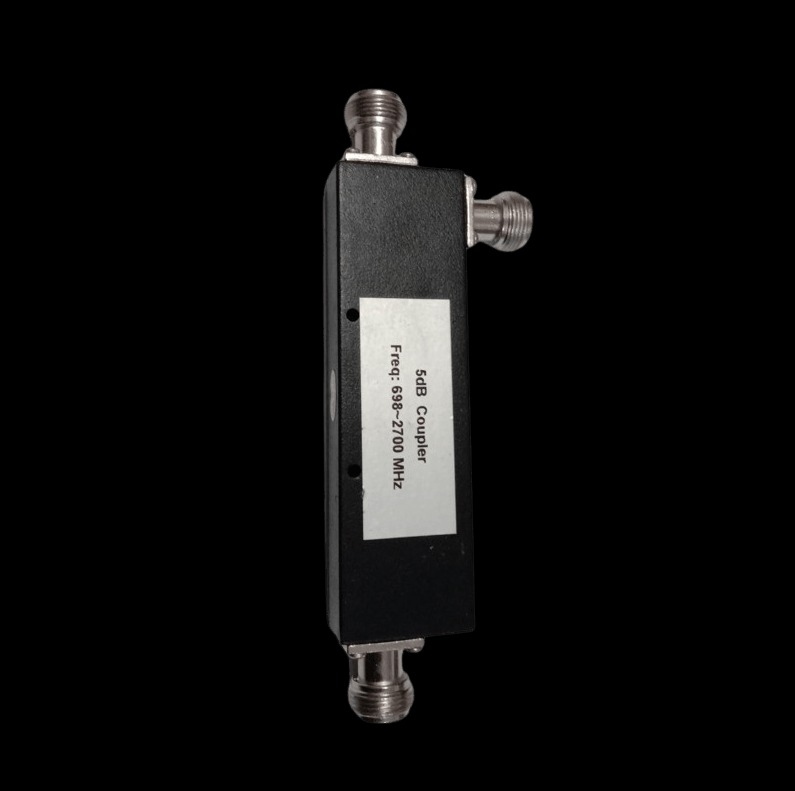

COUPLER 5DB N F/F 698-2700 MHZ

Frequency Range: 698 MHz to 2700 MHz

The coupler operates efficiently within this frequency range, covering a broad spectrum used in various RF and communication applications.
Coupling Factor: 5 dB

This indicates that the output signal is attenuated by 5 dB compared to the input signal. The coupled signal power is approximately 1/3.2 of the input signal power.
Directivity: Typically 10 dB to 15 dB

Directivity measures the isolation between the input and coupled output ports. Higher directivity values indicate better isolation and reduced signal leakage.
Insertion Loss: Typically 0.5 dB to 1.0 dB

Insertion loss represents the loss of signal power due to the insertion of the coupler into the signal path. Lower values are preferable, indicating minimal signal attenuation.
Return Loss: Typically 15 dB to 20 dB

Return loss measures how well the coupler matches the impedance of the transmission line. Higher return loss values indicate better impedance matching and less reflected signal.
Power Handling: Typically 10 W to 50 W

This denotes the maximum power the coupler can handle without sustaining damage. The exact power handling capability will depend on the design and construction of the coupler.
Connector Type: N-type Female

The coupler uses N-type female connectors, which are robust and suitable for high-frequency applications. These connectors are threaded for a secure connection with male connectors.
Construction: Generally made from high-quality materials such as aluminum or brass with dielectric materials like PTFE (Teflon)

The construction materials impact the coupler’s performance, durability, and frequency response.
Dimensions: Varies by model

The size and form factor will depend on the specific design of the coupler. Ensure that it fits within the physical constraints of your setup.
Environmental Conditions:

Temperature Range: Typically from -40°C to +85°C
Humidity: Generally up to 95% non-condensing
Key Considerations:
Signal Attenuation: With a 5 dB coupling factor, this coupler provides moderate signal attenuation. This level of attenuation is useful for applications where a small signal sample is needed for measurement or monitoring without significantly affecting the signal path.

Performance Metrics: Ensure that the directivity and insertion loss are suitable for your application to maintain signal integrity and accurate measurement.

Application Versatility: This coupler is versatile and can be used in various RF applications, including signal monitoring, network testing, and signal distribution.
