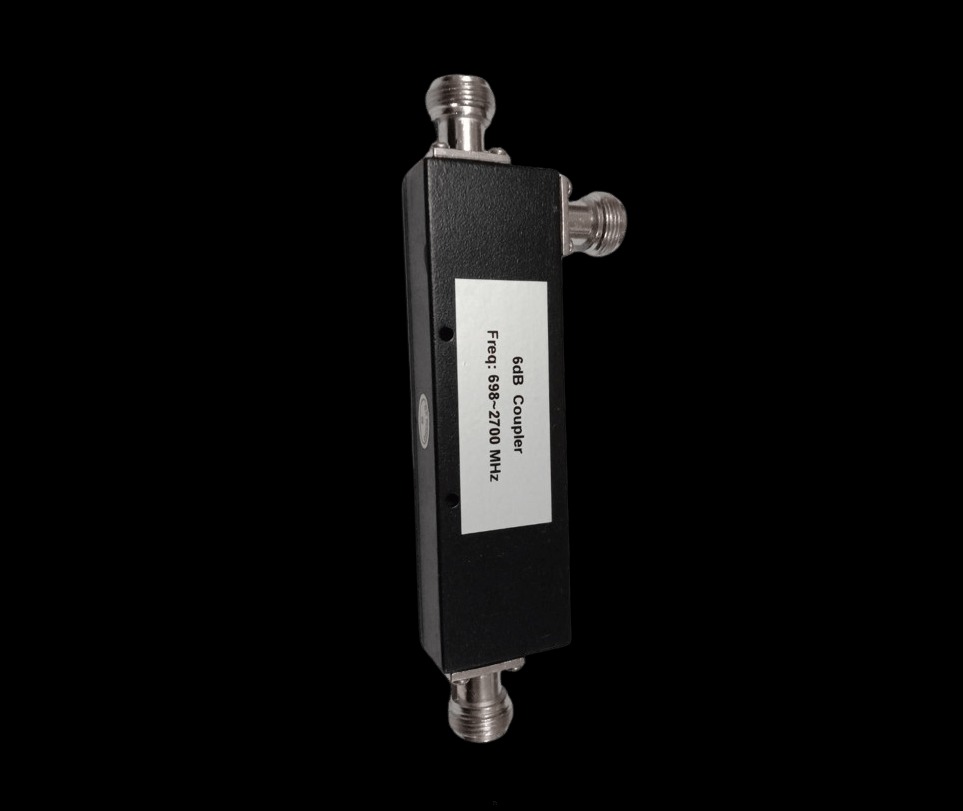

COUPLER 6DB N F/F 698-2700 MHZ

Frequency Range: 698 MHz to 2700 MHz

The coupler is designed to perform well across this frequency range, which covers several important communication bands including those used in cellular networks and Wi-Fi.
Coupling Factor: 6 dB

This indicates that the output signal is attenuated by 6 dB relative to the input signal. In practical terms, the coupled signal is about 1/4 of the input signal power.
Directivity: Typically 10 dB to 15 dB

Directivity measures how well the coupler isolates the coupled output from the direct signal path. Higher directivity values signify better isolation and reduced signal leakage between input and coupled outputs.
Insertion Loss: Typically 0.5 dB to 1.0 dB

Insertion loss is the amount of signal power lost due to the insertion of the coupler into the transmission line. Lower insertion loss is preferable as it indicates minimal signal attenuation.
Return Loss: Typically 15 dB to 20 dB

Return loss measures how well the coupler matches the impedance of the transmission line. Higher return loss values indicate better impedance matching and less reflected signal.
Power Handling: Typically 10 W to 50 W

This denotes the maximum power the coupler can handle without damage. The exact rating depends on the design and construction materials of the coupler.
Connector Type: N-type Female

The coupler features N-type female connectors, which are durable and designed for high-frequency use. They are threaded to ensure a secure connection with male connectors.
Construction: Usually made from high-grade materials such as aluminum or brass with a dielectric material like PTFE (Teflon)

The choice of materials impacts the coupler’s performance, durability, and frequency response.
Dimensions: Varies by model

The physical dimensions of the coupler will depend on its design. Make sure the coupler fits within your system’s physical constraints.
Environmental Conditions:

Temperature Range: Typically from -40°C to +85°C
Humidity: Generally up to 95% non-condensing
Key Considerations:
Signal Attenuation: With a 6 dB coupling factor, this coupler provides moderate signal attenuation. This level of attenuation is useful when a moderate signal sample is needed for measurement or monitoring purposes.

Performance Metrics: Ensure that the coupler has adequate directivity and low insertion loss to maintain signal integrity and provide accurate measurements.

Application Versatility: This coupler is suitable for a range of RF applications including network testing, signal monitoring, and distribution, making it a versatile tool in various RF environments.
