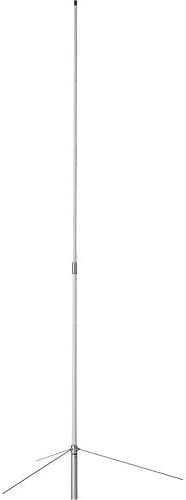

Diamond Dual band Vhf/Uhf antenna X300A base station antenna

Key Features:

• Dual-Band Operation:
  Covers both VHF (144–148 MHz) and UHF (430–450 MHz) frequency ranges, making it ideal for use in ham radio setups, public service, and emergency communication networks.

• High Gain:

  • 6.5 dBi gain on VHF band

  • 9.0 dBi gain on UHF band
    This ensures extended range and clearer signal transmission and reception even in challenging environments.

• Collinear Design with Radials:
  The X300A uses a collinear phase-fed design with fiberglass radome, optimizing radiation efficiency and vertical pattern for excellent omnidirectional coverage.

• Durable Construction:
  Built with high-grade fiberglass and aluminum, the antenna is weather-resistant, corrosion-proof, and suitable for long-term outdoor installations.

• Heavy-Duty Mounting Hardware:
  Comes with a robust U-bolt mounting kit, compatible with poles up to 2.1 inches (55 mm) in diameter, ensuring secure and stable installation in all weather conditions.

• High Power Handling:
  Rated for 200 watts (max input), it supports high-power radio transceivers without performance degradation.

• Lightweight and Easy to Install:
  Despite its performance capabilities, the X300A is relatively light and straightforward to mount, even for single-person installations.
