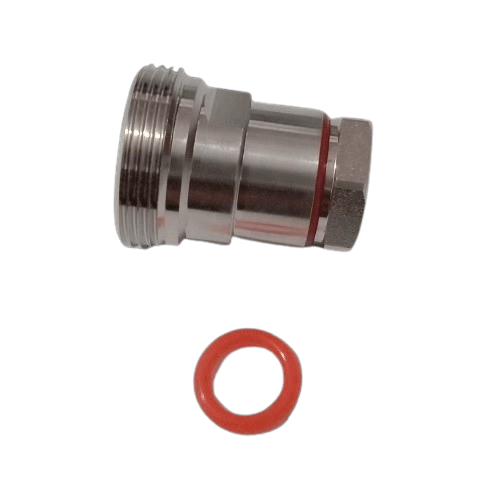

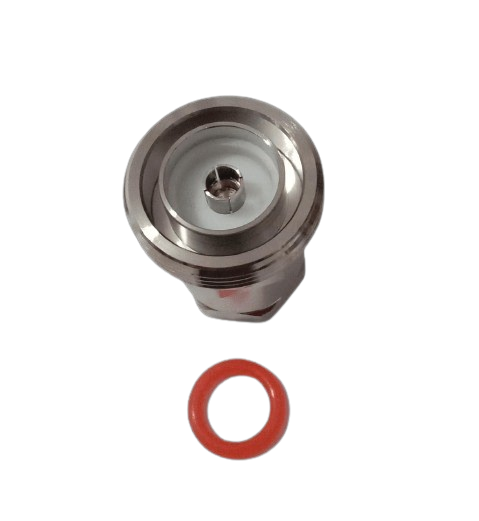

DIN F 1/2″ LDF CLAMP

DIN F 1/2″ LDF CLAMP

₹175

Installation and Use
The 1-1/2″ LDF (Low Density Foam) aspect refers to the type of coaxial cable it is designed to be used with. LDF cables are known for their low attenuation and are widely used in cellular base stations, antenna systems, and other high-frequency transmission systems. The clamp mechanism of the connector ensures a secure and stable connection, preventing any physical stress or movement from affecting the signal integrity.
Applications
The DIN F 1-1/2″ LDF Clamp is widely used in a variety of applications, including cellular networks, broadcast television, and radio, satellite communications, and military communications. Its reliability and performance make it an essential component in critical infrastructure where downtime and signal loss can have significant repercussions.
Conclusion
In summary, the DIN F 1-1/2″ LDF Clamp is a robust, high-performance connector designed to meet the rigorous demands of modern communication systems. Its precise engineering, high-quality materials, and excellent electrical characteristics ensure that it can provide reliable and efficient service in a variety of high-frequency applications. Whether in the heart of a bustling city or a remote installation, this connector is a key component in ensuring seamless and uninterrupted communication.

Categories: , , Tag:

Impedance – 50Ω, Frequency – 6.5Ghz, VSWR – 1.15:1 (Max), Dielectric Resistance – ≥5000MΩ,country of origin-Made in India  packaging Type- Box, Colour-Silver, Usage- Connector Cable and Microwave Parts

The DIN F 1/2″ LDF Clamp is a highly specialized connector designed for use in telecommunications, broadcasting, and other high-frequency applications. This connector plays a critical role in ensuring the integrity and performance of coaxial cable systems, especially in environments where reliability and signal clarity are paramount. Here, we delve into the various aspects that make this connector a crucial component in modern communication infrastructure.
Design and Build
The DIN F 1-1/2″ LDF Clamp is engineered with precision, featuring a robust design that can withstand harsh environmental conditions. The “DIN” in its name refers to the Deutsches Institut f?r Normung, which indicates that this connector adheres to stringent German standards for electrical, electronic, and mechanical equipment. The “F” stands for the female gender of the connector, ensuring compatibility with its male counterparts in the system.
Material and Durability
Constructed from high-quality materials such as brass with a nickel or silver plating, the DIN F 1-1/2″ LDF Clamp offers excellent corrosion resistance, ensuring a long service life even in outdoor installations. The dielectric materials used are often PTFE (Polytetrafluoroethylene), known for its superior electrical insulating properties and high-temperature resistance, making it ideal for high-frequency applications.
Electrical Performance
One of the standout features of this clamp is its electrical performance. The connector is designed to handle frequencies up to 6 GHz, making it suitable for modern communication systems that require high bandwidth. It boasts an impedance of 50 ohms, ensuring minimal signal loss and reflection. The VSWR (Voltage Standing Wave Ratio) is typically 1.15:1 or better, indicating excellent impedance matching and minimal signal degradation.

Weight 0.1 kg
