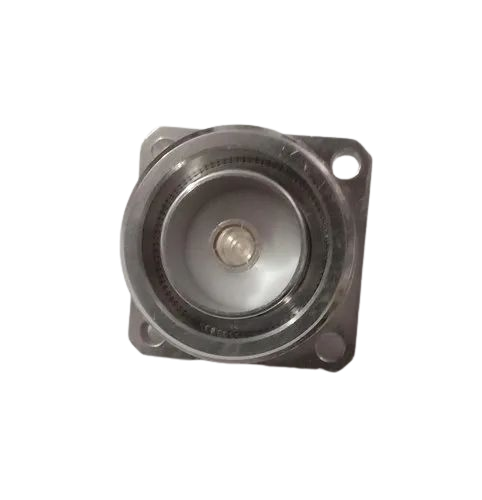

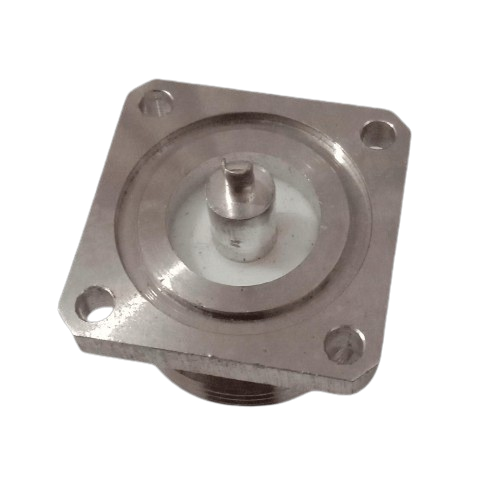

DIN F 4 HOLE SOLDER

The DIN F 4 Hole Solder connector is an RF (radio frequency) connector designed to provide reliable connections in various high-frequency applications. Here’s a detailed description of its features and specifications:

Detailed Description:
Connector Type:

DIN F: Refers to a DIN-style connector with a female interface. The “DIN” stands for Deutsche Industrie-Norm, which is a set of standards developed by the German Institute for Standardization.
4 Hole Solder: Indicates that the connector features four mounting holes designed for soldering. This allows the connector to be securely mounted on a PCB (printed circuit board) or other surfaces.
Design and Construction:

Body: Typically made from durable metal, such as brass or stainless steel, which provides mechanical strength and reliability. The metal body is often plated with nickel or another material to improve corrosion resistance and ensure a good electrical connection.
Contacts: The connector includes a central contact (pin) for the signal and an outer contact (sleeve) for the ground. The central contact is used to connect to the inner conductor of the coaxial cable, while the outer contact connects to the cable’s shield or ground.
4 Hole Mounting: The four mounting holes are designed for soldering the connector to a PCB. This provides a stable and secure connection, and the soldering process ensures good electrical and mechanical contact.
Frequency Range:

The DIN F 4 Hole Solder connector is designed to handle high frequencies, typically up to several GHz, depending on the specific design and construction of the connector. This makes it suitable for RF applications where signal integrity is crucial.
Power Handling:

The connector can handle moderate to high power levels, depending on the design and materials used. It is suitable for applications where power handling is a consideration, such as in RF transmission and broadcasting.
Mechanical Properties:

Durability: The connector is designed to be robust and durable, capable of withstanding mechanical stresses such as vibrations and thermal cycling. The soldered connection ensures a stable and reliable mounting.
Connector Interface: Features a threaded or locking interface to secure the connector when mating with other components. The design ensures a secure connection to avoid accidental disconnections.
