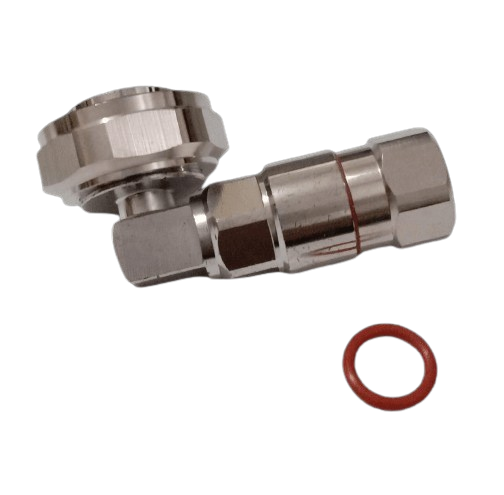

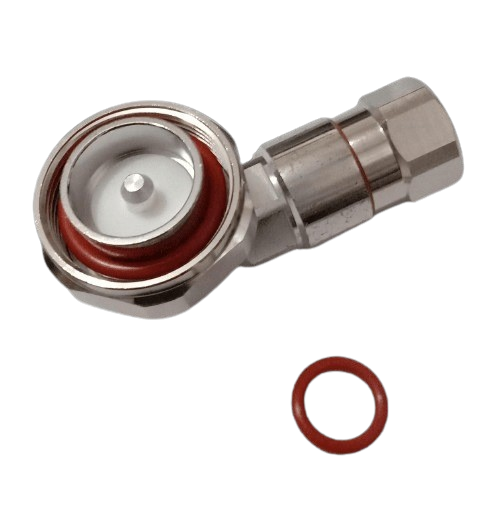

DIN M RA 1/2″ LDF CLAMP

• Preparation:
• Ensure the coaxial cable (1/2 inch LDF) is cut cleanly and stripped according to the manufacturer’s specifications.
  Connector Assembly:

Clamping Mechanism: Insert the prepared cable into the connector body and tighten the clamp to secure the outer conductor to the connector.
Right Angle Design: Allows for easy installation in tight spaces, reducing the bending radius and mechanical stress on the cable.
Durability:

Designed to withstand harsh environmental conditions, providing long-term reliability in outdoor and indoor installations.
Technical Specifications
Frequency Range: Typically up to 3 GHz or higher, depending on the specific design.
Impedance: 50 Ohms, standard for most RF applications.
Return Loss: High return loss for minimal signal reflection, ensuring efficient signal transmission.
VSWR: Low Voltage Standing Wave Ratio (VSWR), indicating good impedance matching and minimal signal loss.
Material: Usually made from high-quality materials such as brass with a nickel or silver plating for corrosion resistance.
Advantages
High Performance: Ensures low signal loss and high reliability in RF signal transmission.
Ease of Installation: The clamp design and right-angle configuration make it user-friendly and suitable for various installation scenarios.

Versatility: Compatible with a wide range of equipment and applications in telecommunications, broadcasting, and networking.
Considerations
Compatibility: Ensure the connector matches the specific cable type (1/2 inch LDF) and the equipment’s connector type.
Environmental Factors: Consider the operating environment, as some connectors may have specific weatherproofing requirements for outdoor use.
Conclusion
The DIN M RA 1/2″ LDF CLAMP connector is a robust and versatile RF connector designed for high-frequency applications. Its right-angle design and clamp mechanism make it ideal for secure and efficient installations in telecommunications, broadcasting, and networking environments.
