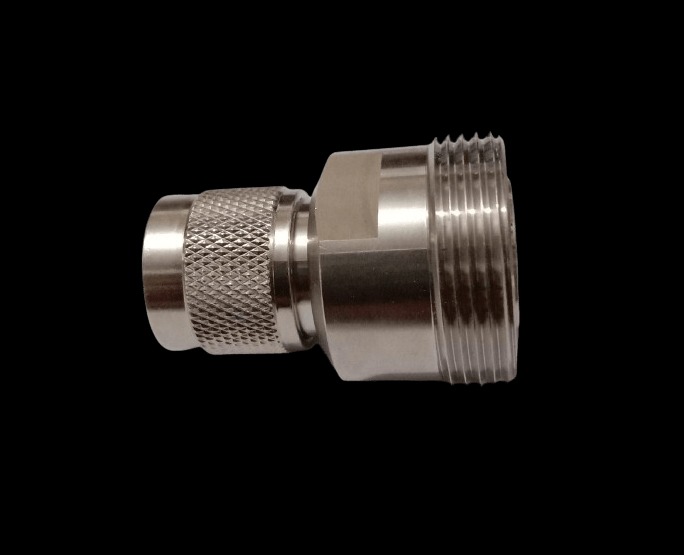

DIN(F) TO N(M) ADAPTOR 7.5GHZ

Specifications:

  1. Connector Types:
    • DIN Female:
      • Connector Type: DIN (Deutsches Institut für Normung)
      • Gender: Female (with a central socket and surrounding shield)
    • N Male:
      • Connector Type: N-Type
      • Gender: Male (with a central pin and surrounding shield)
  2. Frequency Range:
    • Up to 7.5 GHz: The adapter is designed to perform reliably at frequencies up to 7.5 gigahertz, suitable for high-frequency RF applications.
  3. Impedance:
    • Typically 50 Ohms:
      • DIN Connectors: Often 50 ohms, used for RF applications.
      • N Connectors: Generally 50 ohms as well. Ensuring impedance matching between the adapter and your system is crucial to avoid signal reflection and loss.
  4. Mechanical Construction:
    • Material: Typically made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
    • Design: Designed to provide a secure and reliable connection between DIN Female and N Male connectors, maintaining signal integrity.
  5. Applications:
    • RF Testing: Connecting RF equipment or devices with DIN and N connectors in test environments.
    • Communication Systems: Bridging connections between devices or cables with DIN and N interfaces.
    • Microwave Systems: Connecting components in systems that operate at higher frequencies.
    • General RF Applications: Where a transition between DIN and N connectors is required.
  6. Typical Features:
    • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between different connector types.
    • Durability: Built to handle frequent use and provide reliable performance over time.

Usage Tips:

  • Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches that of your equipment to prevent signal issues and reflections.
  • Check Frequency Range: Verify that the adapter’s frequency range (up to 7.5 GHz) meets the requirements of your application. For frequencies beyond this range, a higher frequency rating might be needed.
  • Ensure Secure Connections: Properly connect the DIN Female socket to the DIN Male plug and the N Male plug to the N Female socket to avoid loose connections, which can lead to signal problems.
  • Inspect Regularly: Periodically check the adapter for wear or damage to ensure continued optimal performance.

This DIN Female to N Male adapter is a versatile and practical component for connecting or transitioning between DIN and N connectors, making it valuable for RF testing, communication systems, microwave applications, and other high-frequency uses.

290

⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available

💰 Lowest Prices

The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

The DIN(F) to N(M) adaptor is designed for high-frequency RF and signal transmission applications, supporting frequencies up to 7.5GHz. It features a DIN female connector on one end and an N-type male connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |

  • DIN Female to N Male Adapter: This adapter features a DIN Female connector on one end and an N Male connector on the other end. The DIN Female connector has a central socket and a surrounding shield, while the N Male connector has a central pin and a surrounding shield. This adapter allows for the connection of devices or cables with DIN and N connectors, facilitating a transition between these two connector types.
  • Frequency Range: 7.5 GHz. This indicates that the adapter is designed to operate effectively up to this frequency, ensuring reliable signal transmission and minimal signal degradation within this range.
Weight 0.1 kg
