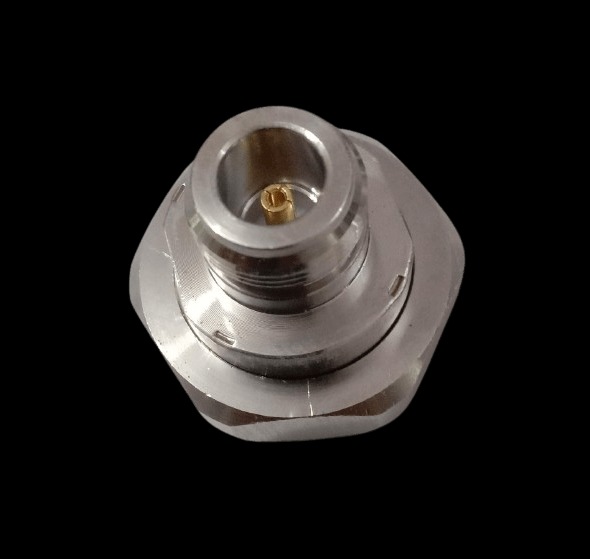

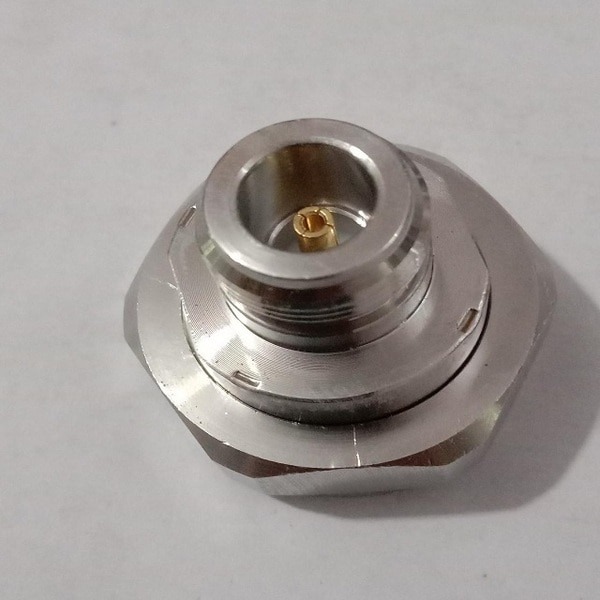

DIN(M) TO N(F) ADAPTOR 7.5GHZ

Specifications:

1. Connector Types:
   • DIN Male:
     • Connector Type: DIN (Deutsches Institut für Normung)
     • Gender: Male (with a central pin and surrounding shield)
   • N Female:
     • Connector Type: N-Type
     • Gender: Female (with a central socket and surrounding shield)
2. Frequency Range:
   • Up to 7.5 GHz: The adapter is engineered to work efficiently at frequencies up to 7.5 gigahertz, suitable for high-frequency RF applications.
3. Impedance:
   • Typically 50 Ohms:
     • DIN Connectors: Often 50 ohms for RF applications.
     • N Connectors: Typically 50 ohms as well. Ensuring impedance matching between the adapter and your system is crucial to avoid signal reflection and loss.
4. Mechanical Construction:
   • Material: Usually made from high-quality metals such as brass or stainless steel, with plating options like gold or nickel to enhance conductivity and resist corrosion.
   • Design: Designed to provide a secure and reliable connection between DIN Male and N Female connectors, maintaining signal integrity.
5. Applications:
   • RF Testing: Connecting RF equipment or devices with DIN and N connectors in test environments.
   • Communication Systems: Bridging connections between devices or cables with DIN and N interfaces.
   • Microwave Systems: Connecting components in systems that operate at higher frequencies.
   • General RF Applications: Where a transition between DIN and N connectors is required.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between different connector types.
   • Durability: Built to withstand frequent use and provide reliable performance over time.
