Specifications:
- Connector Types:
- F Male:
- Connector Type: F-Connector
- Gender: Male (with a central pin and surrounding threaded shield)
- F Female:
- Connector Type: F-Connector
- Gender: Female (with a central socket and surrounding threaded shield)
- F Male:
- Frequency Range:
- Up to 3 GHz: The adapter is designed to perform reliably at frequencies up to 3 gigahertz, suitable for many RF and communication applications within this range.
- Impedance:
- Typically 75 Ohms:
- F Connectors: Commonly 75 ohms, used in TV and video applications. Ensuring impedance matching between the adapter and your system is important to prevent signal reflection and loss.
- Typically 75 Ohms:
- Mechanical Construction:
- Material: Typically made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
- Design: Designed to provide a secure and reliable connection between F Male and F Female connectors, maintaining signal integrity.
- Applications:
- RF and Video Systems: Connecting devices or cables in RF and video systems where F connectors are used.
- Communication Systems: Bridging connections between devices with F connectors.
- TV and Satellite Systems: Connecting components in television and satellite communication systems.
- General RF Applications: Where a transition between F Male and F Female connectors is needed.
- Typical Features:
- Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
- Durability: Built to handle frequent use and provide reliable performance over time.
Usage Tips:
- Confirm Impedance Compatibility: Ensure that the adapter’s impedance (typically 75 ohms) matches that of your equipment to avoid signal issues and reflections.
- Check Frequency Range: Ensure the adapter’s frequency range (up to 3 GHz) meets the requirements of your application. For higher frequencies, consider an adapter with a higher frequency rating.
- Ensure Secure Connections: Properly connect the F Male plug to the F Female socket to avoid loose connections that can cause signal problems.
- Inspect Regularly: Periodically check the adapter for signs of wear or damage to ensure continued optimal performance.

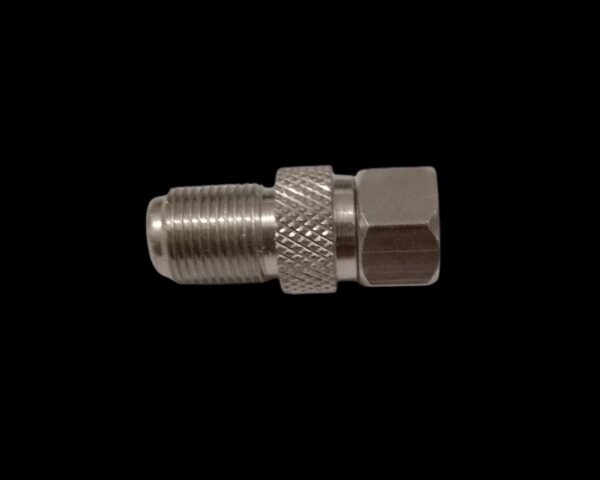

This F Male to F Female adapter is a practical component for connecting or transitioning between F connectors, making it useful in RF, video, communication, and general RF applications where F connectors are used
