Specifications:
- Connector Types:
- F Male:
- Connector Type: F-Type
- Gender: Male (with a central pin and a threaded outer shield for connection)
- F Female:
- Connector Type: F-Type
- Gender: Female (with a central socket and a threaded outer shield for connection)
- F Male:
- Frequency Range:
- Up to 3 GHz: Designed to perform reliably up to 3 gigahertz, suitable for various RF and communication applications within this frequency range.
- Impedance:
- Typically 75 Ohms:
- F Connectors: Commonly used for 75-ohm systems, such as cable television and satellite communications. Proper impedance matching is important to avoid signal reflection and loss.
- Typically 75 Ohms:
- Mechanical Construction:
- Material: Typically made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
- Design: Features a right-angle design to change the direction of the cable connection by 90 degrees, making it suitable for tight or confined spaces.
- Applications:
- Cable Television (CATV): Connecting or routing coaxial cables in CATV systems.
- Satellite Communications: Connecting satellite receivers or other equipment with F connectors.
- RF Systems: Facilitating connections in RF systems where space constraints require a right-angle adapter.
- Audio/Video Equipment: Connecting devices with F connectors in AV setups.
- Typical Features:
- Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
- Space Management: The right-angle design helps manage space and cable routing in tight or awkward areas.
- Durability: Built to withstand frequent connections and disconnections, providing reliable long-term performance.
Usage Tips:
- Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 75 ohms) matches the impedance of your system to prevent signal issues and reflections.
- Check Frequency Range: Verify that the adapter’s frequency range (up to 3 GHz) is appropriate for your application. For higher frequencies, consider an adapter with a higher frequency rating.
- Ensure Secure Connections: Make sure that the F Male and F Female connectors are properly connected to avoid loose connections, which can lead to signal problems.
- Inspect Regularly: Periodically check the adapter for signs of wear or damage to ensure continued optimal performance.

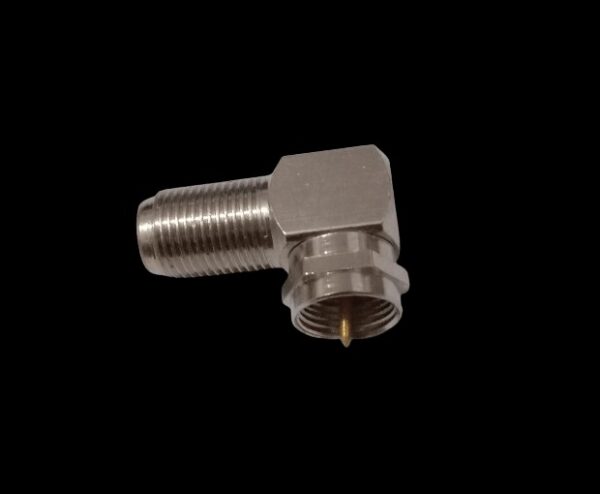

This F Male to F Female Right-Angle Adapter is a practical solution for connecting or routing coaxial cables in RF and communication systems, especially in situations where space is limited or where a 90-degree bend is needed.
