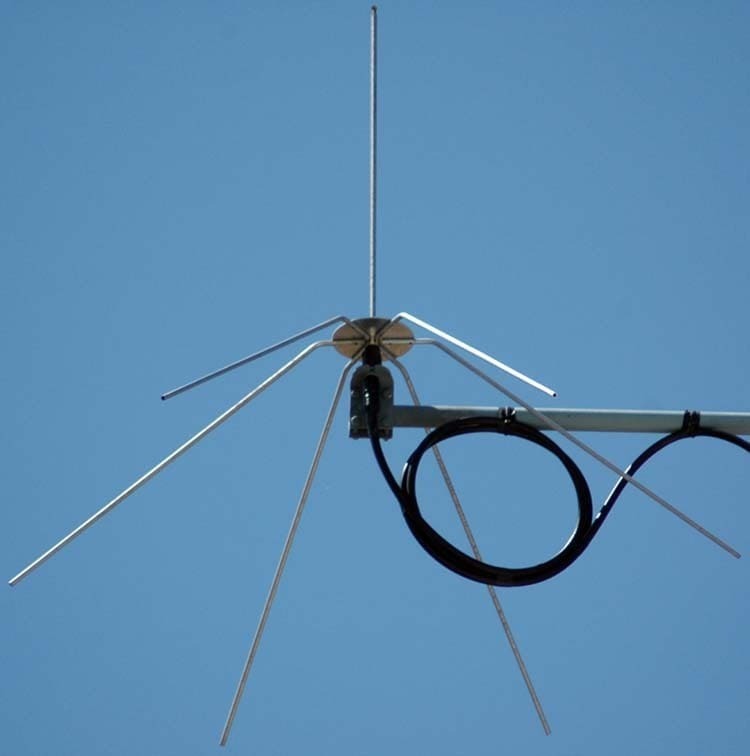

GROUND PLANE ANTENNA 403-470 Mhz
| Frequency Range | 403-470 MHz |
| Bandwidth | 20 MHz |
| Gain | 3 dBi |
| Half-Power Beamwidth (Horizontal) | 360 degree |
| VSWR | < 1.5 |
| Input Impedance | 50 Ohm |
| Polarization | Vertical |
| Lightning Protection | Direct Ground |
| Maximum Power | 100 Watt |
| Radiation Pattern | Omnidirectional |
| Connector Type | UHF/N or CS |
| Mechanical Data | |
| Mounting Mast Diameter | 32 – 60 mm |
| Maximum Wind Velocity | 200 km/hr |
âš¡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The 403–470 MHz Ground Plane Antenna (3 dBi) is a robust, omnidirectional antenna designed for reliable VHF/UHF communication across a wide frequency range. Utilizing a classic ground plane configuration with precision-tuned radial elements, this antenna provides stable radiation characteristics, consistent impedance matching, and dependable performance in both indoor and outdoor installations.
Engineered to deliver 3 dBi gain, the antenna offers enhanced signal strength and improved coverage compared to standard 0 dBi solutions, making it ideal for base stations, repeaters, and fixed wireless systems. Its omnidirectional radiation pattern ensures uniform 360-degree coverage, supporting clear and reliable communication in all horizontal directions.
The antenna is well suited for applications such as UHF/VHF two-way radio systems, PMR, telemetry, SCADA, wireless data links, and public safety communication networks operating within the 403–470 MHz band. The wide bandwidth allows for flexibility across multiple channels without retuning.
Constructed from high-quality, corrosion-resistant materials, the ground plane antenna is designed to withstand harsh environmental conditions, including wind, rain, and UV exposure. The radial elements also act as a stable ground reference, improving efficiency and reducing signal loss. Its compact and lightweight design enables easy mounting on masts, poles, or rooftops using standard hardware.
Overall, the 403–470 MHz 3 dBi Ground Plane Antenna delivers an excellent balance of performance, durability, and cost-effectiveness, making it a dependable choice for professional and commercial wireless communication installations.
