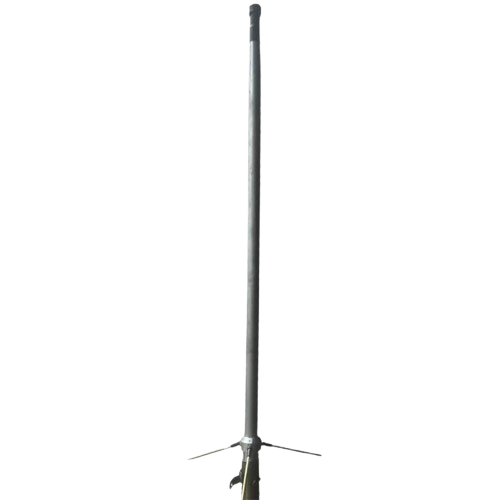

A Ground Plane Antenna is a type of omnidirectional vertical RF antenna engineered for efficient transmission and reception in the UHF frequency range of 403 MHz to 520 MHz. This model is designed to deliver ~6 dBi gain, providing enhanced signal strength and extended range compared to lower-gain antennas. Ground plane antennas are widely used in base stations, mobile communication systems, wireless telemetry, public safety networks, SCADA/utility links, and industrial radio systems.
Operating Principle
A ground plane antenna consists of a vertical radiating element (monopole) mounted above a set of radial ground elements or a conductive metal surface that acts like an artificial “ground plane.” The ground plane serves as a reflector and return path for RF current, improving radiation efficiency and helping match the antenna to a 50 Ω transmission line (coaxial cable). This configuration produces a stable, low-loss radiation pattern that is ideal for terrestrial communications.
