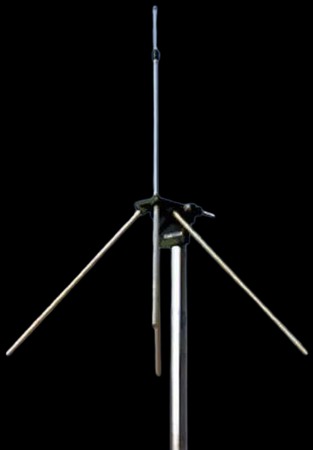

GROUND PLANE ANTENNA 806-869MHZ

The Ground Plane Antenna (806–869 MHz, 3 dBi) is a compact, rugged, and high-performance antenna designed for reliable RF communication within the UHF wireless band. Engineered for enhanced signal stability, this antenna features a classic ¼-wave radiator combined with carefully optimized ground radials that create a balanced radiation pattern, making it ideal for base stations, repeaters, and fixed installations requiring consistent omni-directional coverage.

Operating across the 806–869 MHz frequency range, the antenna supports multiple communication systems such as LMR, TETRA, PMR, two-way radio networks, SCADA, telemetry, and IoT applications. Its 3 dBi gain provides an excellent balance between range, coverage, and reliability without causing excessive vertical compression of the radiation pattern. This ensures strong signal penetration in urban, suburban, and rural environments.

Constructed using high-quality aluminum or stainless-steel elements, the antenna is corrosion-resistant and suitable for long-term outdoor deployment. The radiator and radials are precision-cut for optimal resonance and minimal VSWR across the entire band. The central feed point is designed with a durable SO-239/N-Type connector (as per model specification), ensuring low-loss RF connectivity.

The antenna features four or more downward-tilted ground radials, providing a stable ground reference and shaping a uniform 360° horizontal radiation pattern. This configuration helps control impedance, stabilize performance, and improve overall antenna efficiency.

Installation is quick and straightforward, thanks to its mast-mountable bracket system, suitable for poles of various diameters. The lightweight yet sturdy structure ensures dependable operation even in harsh weather conditions, including strong winds, heavy rain, and UV exposure.
