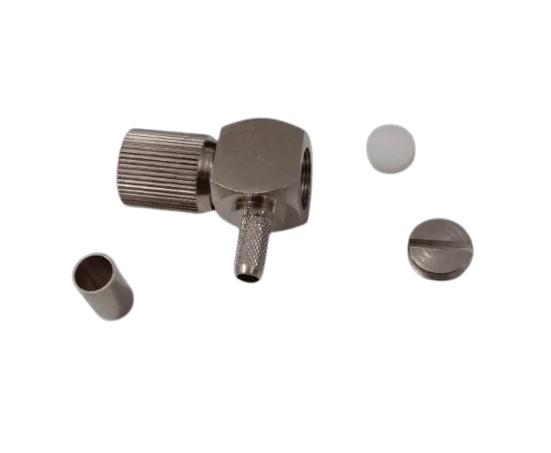

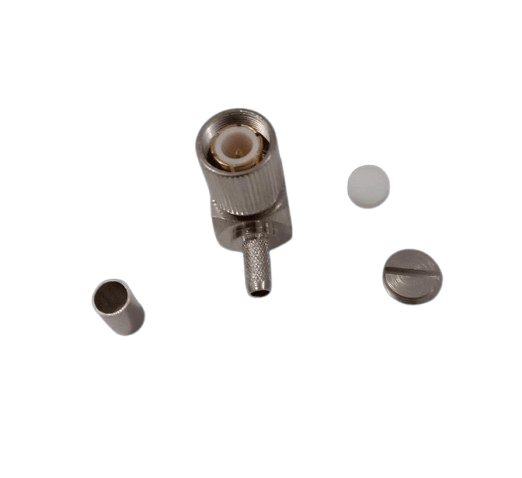

L9 M RA BT 3002 CRIMP

1. Connector Type:
   • BT 3002: Conforms to the BT 3002 standard, used in BT telecommunications systems for various applications including telephone lines and data networks.
2. Cable Compatibility:
   • BT Cables: Designed to work with cables that adhere to BT standards, commonly involving twisted pair cables used in telecommunication systems.
3. Crimping Method:
   • Crimp: The connector attaches to the cable using a crimping tool. This process involves compressing the connector onto the cable’s conductors to ensure a secure and reliable connection.
4. Material:
   • Body: Typically made from durable metals such as brass or nickel-plated brass for robustness and long-term performance.
   • Contacts: Made from conductive materials with appropriate plating (e.g., gold or nickel) to ensure good electrical connectivity and minimal signal loss.
5. Impedance:
   • Varies: The impedance should match the connected cable’s specifications. For BT cables, the impedance is designed to ensure proper signal transmission.
6. Dimensions:
   • Right-Angle Design: The “RA” indicates that the connector is designed with a right-angle configuration, which is useful for applications where space is limited or where cables need to be routed in specific directions.
7. Usage:
   • Applications: Used in telecommunications systems adhering to the BT 3002 standard. This includes telephone systems, data networks, and other BT infrastructure components.
   • Common Uses: Connecting elements within a BT system, such as network or telephone lines, while accommodating spatial constraints due to the right-angle design.
8. Installation:
   • Tools Required: Crimping tool, wire stripper, and potentially a cable cutter.
   • Procedure: Strip the insulation from the cable, insert the conductors into the connector, and use a crimping tool to secure the connector to the cable.

Advantages

• Right-Angle Design: Useful for installations where space is limited or specific orientations are needed.
• Reliable Connection: Provides a secure and stable connection, essential for maintaining signal integrity in telecommunication applications.
• Ease of Installation: Crimp connectors are generally easy to install with the right tools.
