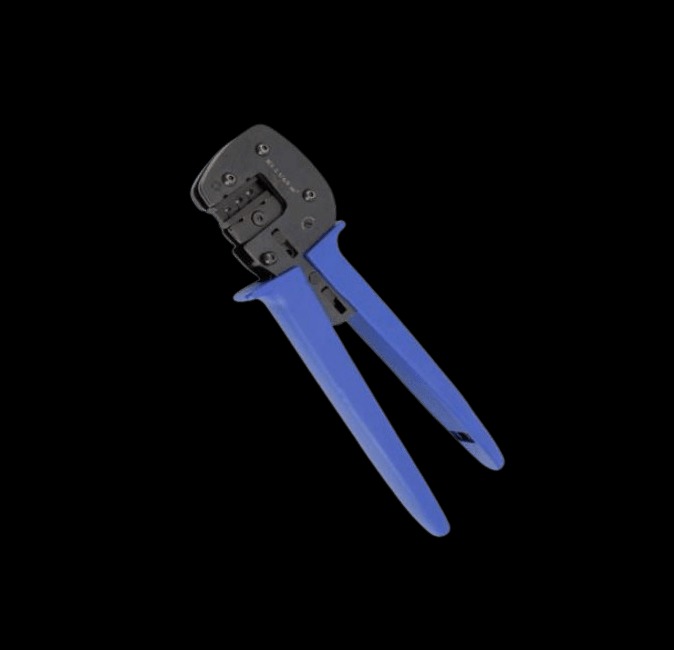

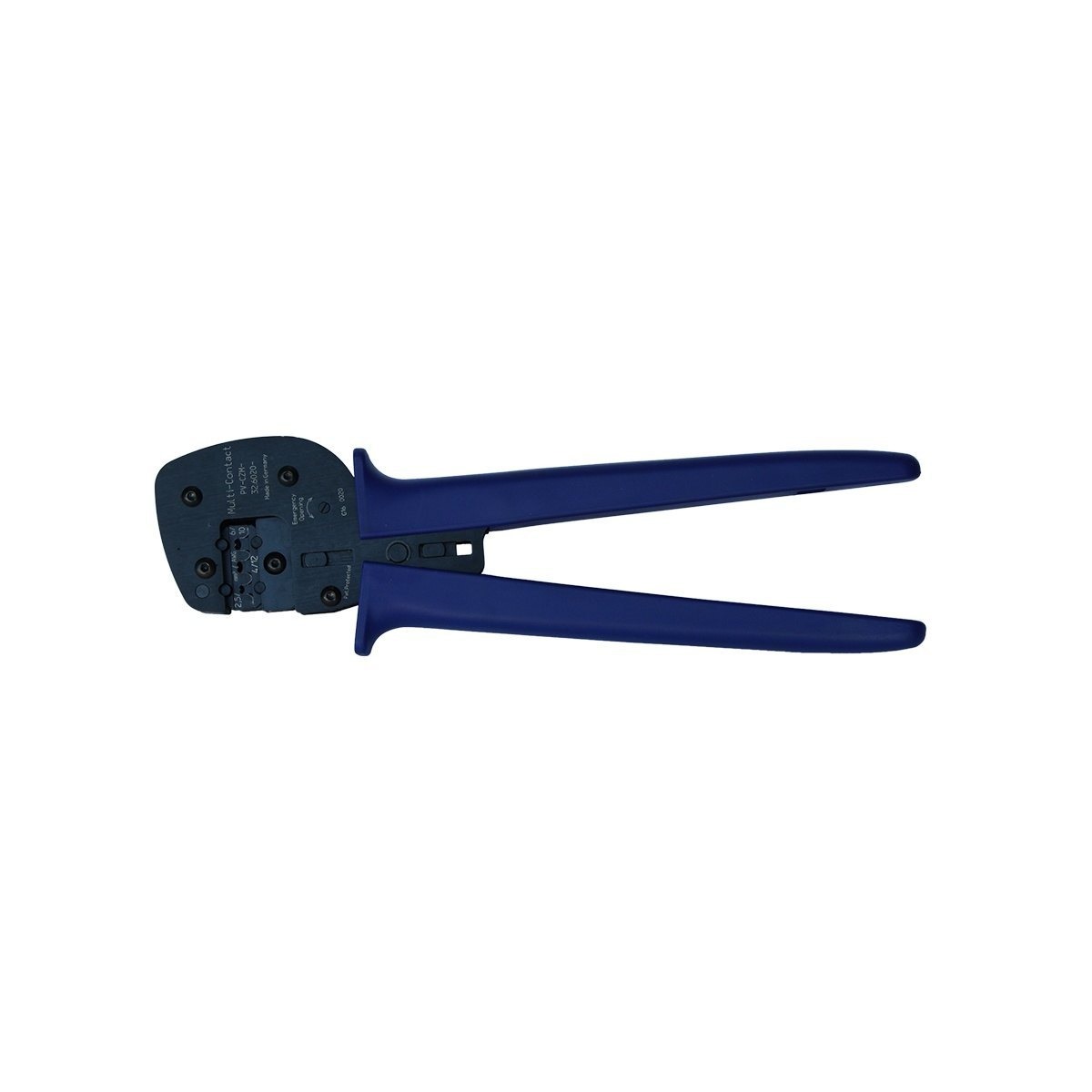

MC4 RA CRIMPING TOOL

Using an MC4 RA Crimping Tool

1. Prepare the Cable:
   • Strip the Insulation: Use a stripping tool to remove the insulation from the solar cable, following the manufacturer’s specifications for the correct length of stripped wire.
2. Insert the Connector:
   • Slide the Connector: Place the stripped wire into the MC4 connector, making sure the wire is properly seated within the connector.
3. Crimp the Connector:
   • Align the Tool: Place the MC4 connector into the crimping tool, aligning it correctly with the crimping dies.
   • Crimp: Squeeze the handles firmly to crimp the connector onto the cable. Ensure that the crimping process creates a secure and tight connection.
4. Inspect the Connection:
   • Check Fit: Verify that the connector is securely crimped and that the wire is properly terminated.
   • Test the Connection: If possible, perform a continuity test to ensure the connection is reliable.

Recommended MC4 RA Crimping Tools

1. Renogy MC4 Crimping Tool: Known for its precision and durability, suitable for both standard and right-angle MC4 connectors.
2. Klein Tools MC4 Crimping Tool: Provides reliable crimping with comfortable handles and durable construction, often available in different models for various connector types.
3. Victron Energy MC4 Crimping Tool: Designed specifically for solar installations, ensuring high-quality crimping for MC4 connectors.
4. Sungrow MC4 Crimping Tool: Offers high performance and is suitable for professional use in solar installations.

Tips for Using an MC4 RA Crimping Tool

• Ensure Compatibility: Verify that the crimping tool is compatible with the size and type of MC4 connectors you are using.
• Adjust Settings: If the tool has adjustable settings, ensure they are set correctly for the size of the connector and wire.
• Maintain Tool Condition: Regularly check and maintain the tool to ensure optimal performance. Replace any worn or damaged parts as needed.
• Practice Proper Technique: Use steady pressure during crimping to avoid damaging the connector or the cable.

Applications

• Solar Panel Installations: Used for connecting solar panels to the rest of the photovoltaic system.
• Maintenance and Repairs: Essential for servicing and repairing solar power systems.
