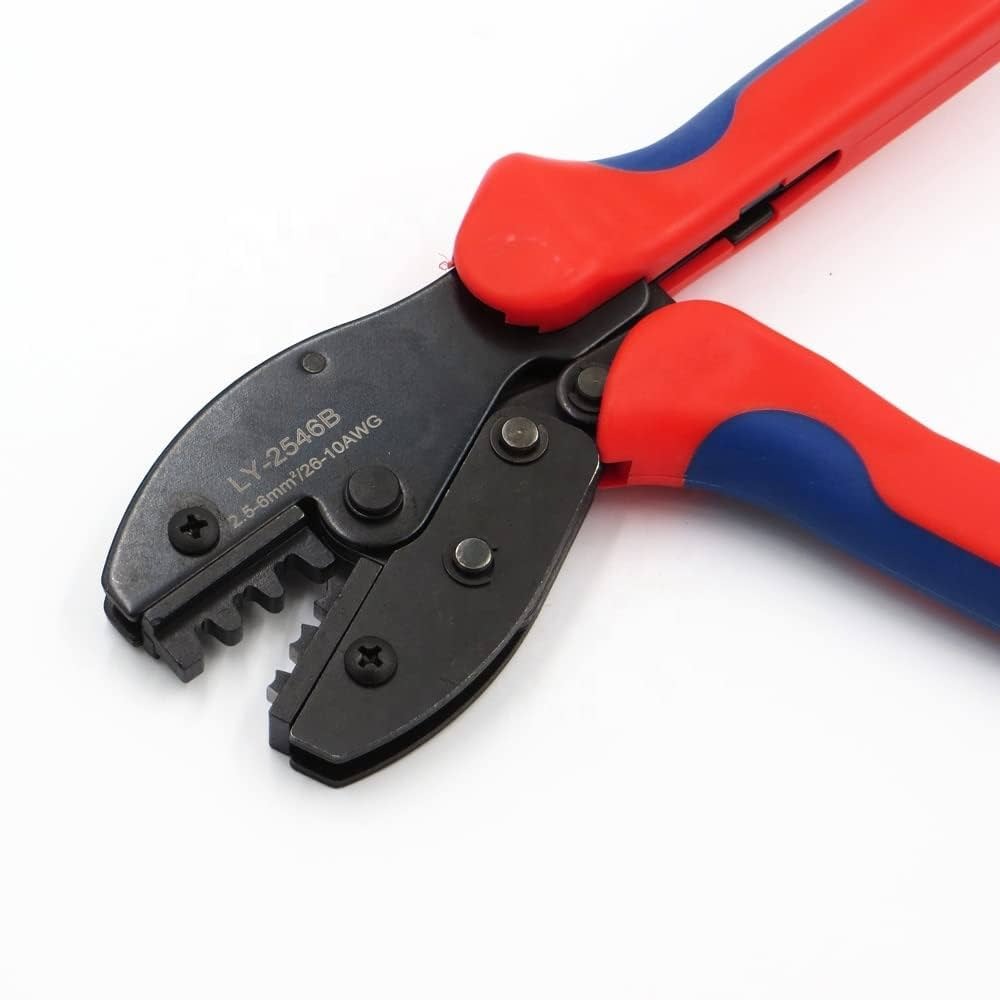

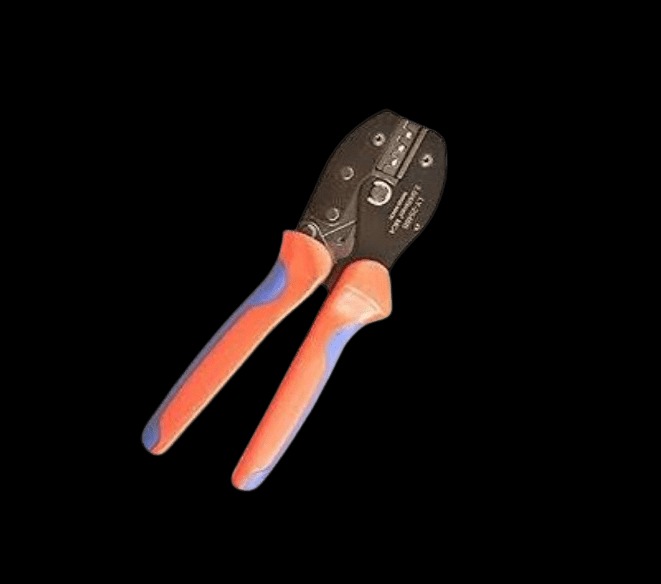

Using an MC4 ST Crimping Tool
- Prepare the Cable:
- Strip the Insulation: Use a coaxial cable stripper or wire stripper to remove the insulation from the solar cable. Follow the specifications for the correct length of stripped wire.
- Assemble the Connector:
- Insert the Cable: Place the stripped wire into the MC4 connector, ensuring the wire is properly positioned within the connector.
- Crimp the Connector:
- Align the Tool: Position the MC4 connector in the crimping tool, aligning it with the correct die for the connector size.
- Crimp: Squeeze the handles firmly to crimp the connector onto the cable. Ensure the crimp is secure and the connection is reliable.
- Inspect the Connection:
- Check Fit: Ensure that the connector is properly crimped and the wire is securely terminated.
- Test the Connection: If possible, perform a continuity test to verify the connection’s reliability.
Recommended MC4 ST Crimping Tools
- Renogy MC4 Crimping Tool: Known for its precision and durability, suitable for standard MC4 connectors.
- Klein Tools MC4 Crimping Tool: Offers reliable crimping with comfortable handles and robust construction, often used for various connector types including MC4.
- Victron Energy MC4 Crimping Tool: Designed for high-performance crimping in solar installations, including MC4 connectors.
- Sungrow MC4 Crimping Tool: Provides professional-grade crimping with a focus on reliability and ease of use.
Tips for Using an MC4 ST Crimping Tool
- Ensure Compatibility: Verify that the crimping tool is compatible with the specific MC4 connectors and cable sizes you are using.
- Adjust Settings: If the tool has adjustable settings or interchangeable dies, make sure they are correctly set for the connector and wire size.
- Maintain the Tool: Regularly check and maintain the tool to ensure it remains in good condition. Replace worn or damaged parts as needed.
- Practice Proper Technique: Use steady pressure during crimping to avoid damaging the connector or the wire. For ratcheting tools, ensure that the ratchet mechanism is fully engaged.
Applications
- Solar Panel Installations: Essential for connecting solar panels to other components in a photovoltaic system.
- System Maintenance and Repairs: Useful for servicing and repairing existing solar power systems.
