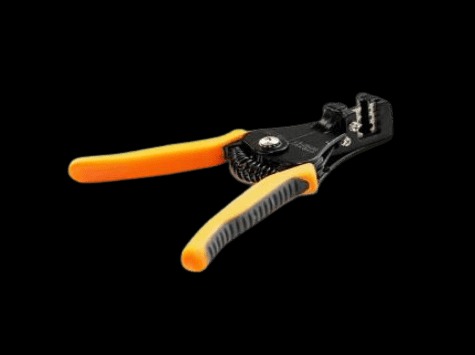

MC4 STRIPING TOOL

Using an MC4 Stripping Tool

1. Select the Right Size: Adjust the tool to match the cable size you are working with. Many MC4 stripping tools have a gauge or adjustable mechanism to fit various cable sizes.
2. Insert the Cable: Place the cable into the tool’s stripping jaws, ensuring the insulation is aligned correctly for the length you need to strip.
3. Strip the Insulation: Squeeze the handles to engage the blades, which will cut through the insulation and remove it from the wire. Ensure that the inner conductor is not damaged.
4. Inspect the Wire: Check that the stripped area is clean and that no strands of the conductor are damaged or frayed. The stripped length should match the connector’s requirements.

Recommended MC4 Stripping Tools

1. Renogy MC4 Cable Stripper: A popular choice for stripping solar cables, known for its precision and durability.
2. Klein Tools 2-in-1 Wire Stripper and Cutter: While not exclusively for MC4 connectors, it is a versatile tool that can handle various wire sizes and types.
3. Ideal Industries Automatic Wire Stripper: Known for its ease of use and ability to handle different wire gauges, including those used in solar installations.

Tips for Using an MC4 Stripping Tool

• Follow Manufacturer’s Specifications: Always refer to the specifications for the cable and connector you are using to ensure proper stripping length and technique.
• Maintain Tool Condition: Keep the tool clean and sharp for consistent performance. Regular maintenance will prolong the tool’s life and ensure reliable operation.
• Practice Proper Handling: Use the tool carefully to avoid damaging the wires or the insulation.

Applications

• Solar Panel Installations: Essential for preparing cables for MC4 connectors in photovoltaic (solar) systems.
• Cable Maintenance: Useful for any applications requiring precise insulation stripping of similar cable types.
