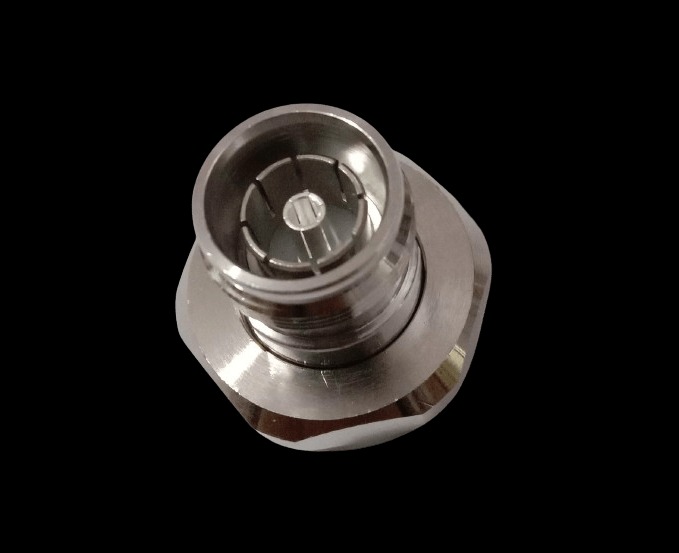

MINI DIN(F) TO DIN(M) ADAPTOR 7.5GHZ

Specifications:

1. Connector Types:
   • Mini DIN Female:
     • Connector Type: Mini DIN
     • Gender: Female (with a central socket and surrounding shield)
     • Size: Smaller and more compact compared to standard DIN connectors.
   • DIN Male:
     • Connector Type: DIN (Deutsches Institut für Normung)
     • Gender: Male (with a central pin and surrounding shield)
     • Size: Standard DIN size used in various RF and communication applications.
2. Frequency Range:
   • Up to 7.5 GHz: Designed for operation up to 7.5 gigahertz, suitable for high-frequency RF and communication systems.
3. Impedance:
   • Typically 50 Ohms:
     • Mini DIN Connectors: Impedance can vary depending on the specific Mini DIN type. Ensure it matches the system requirements.
     • DIN Connectors: Typically 50 ohms for RF applications. Proper impedance matching is crucial to avoid signal reflection and loss.
4. Mechanical Construction:
   • Material: Made from high-quality materials such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Built to provide a reliable and secure connection between Mini DIN Female and DIN Male connectors, maintaining signal integrity.
5. Applications:
   • RF Testing: Connecting or extending RF equipment with Mini DIN and DIN connectors in test setups.
   • Communication Systems: Bridging connections between devices or cables with Mini DIN and DIN connectors.
   • Microwave Systems: Facilitating connections in high-frequency microwave systems.
   • Specialized Equipment: Where a transition between Mini DIN and DIN connectors is needed.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Durability: Built to handle frequent connections and disconnections, providing reliable performance over time.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter matches the impedance of your equipment to prevent signal issues and reflections. Check the impedance specification for Mini DIN connectors used in your application.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 7.5 GHz) is suitable for your application. For frequencies higher than 7.5 GHz, consider an adapter rated for higher frequencies.
• Ensure Secure Connections: Properly connect the Mini DIN Female and DIN Male connectors to avoid loose connections that could lead to signal problems.
• Inspect Regularly: Periodically check the adapter for any signs of wear or damage to ensure continued optimal performance.

This Mini DIN Female to DIN Male adapter is a practical solution for connecting or transitioning between Mini DIN and DIN connectors, making it useful for RF testing, communication systems, microwave applications, and other high-frequency uses where reliable and minimal-loss connections are essential.
