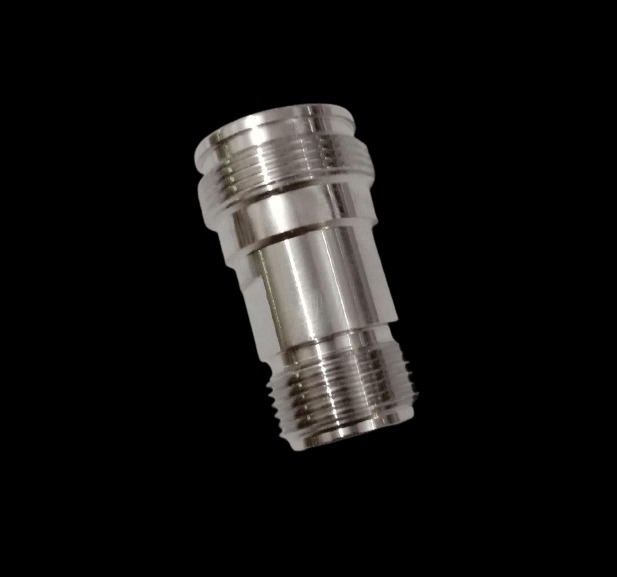

MINI DIN(F) TO N(F) ADAPTOR 7.5GHZ

MINI DIN(F) TO N(F) ADAPTOR 7.5GHZ

₹550

  1. Connector Types:
    • Mini DIN Female:
      • Connector Type: Mini DIN (a smaller version of the standard DIN connector, typically used in various specialized applications)
      • Gender: Female (with a central socket and surrounding shield)
    • N Female:
      • Connector Type: N-Type
      • Gender: Female (with a central socket and surrounding shield)
  2. Frequency Range:
    • Up to 7.5 GHz: The adapter is engineered to perform reliably at frequencies up to 7.5 gigahertz, making it suitable for high-frequency RF and microwave applications.
  3. Impedance:
    • Typically 50 Ohms:
      • Mini DIN Connectors: Impedance can vary, so check specific requirements for your application.
      • N Connectors: Typically 50 ohms. Ensuring impedance matching is crucial to avoid signal reflection and loss.
  4. Mechanical Construction:
    • Material: Usually made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
    • Design: Designed to provide a secure and reliable connection between Mini DIN Female and N Female connectors, maintaining signal integrity.
  5. Applications:
    • RF Testing: Connecting RF equipment or devices with Mini DIN and N connectors in test setups.
    • Communication Systems: Bridging connections between devices or cables with Mini DIN and N connectors.
    • Microwave Systems: Connecting components in high-frequency microwave systems.
    • Specialized Equipment: Where a transition between Mini DIN and N connectors is needed, often in specialized or compact RF systems.
  6. Typical Features:
    • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between different connector types.
    • Durability: Built to handle frequent connections and provide reliable performance over time.
Categories: , Tag:

| This Mini DIN(F) to N(F) adaptor is designed for high-frequency RF and signal transmission applications, supporting frequencies up to 7.5GHz. It features a Mini DIN female connector on one end and an N-type female connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |

  • Mini DIN Female to N Female Adapter: This adapter features a Mini DIN Female connector on one end and an N Female connector on the other end. The Mini DIN Female connector has a central socket with a surrounding shield, designed for compact and specific applications. The N Female connector has a central socket and a surrounding shield, widely used for general RF and microwave applications. This adapter allows for the transition between Mini DIN and N connectors, accommodating systems that require different connector types.
  • Frequency Range: 7.5 GHz. This indicates that the adapter is designed to operate effectively up to this frequency, ensuring reliable signal transmission and minimal signal degradation within this range.
Weight 0.1 kg
