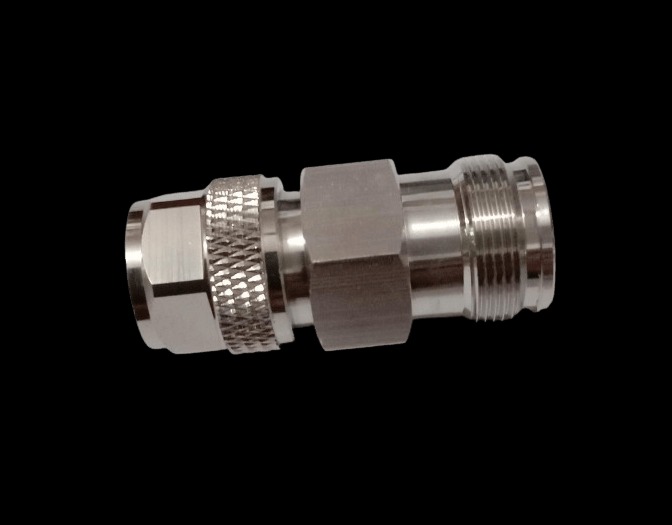

MINI DIN(F) TO N(M) ADAPTOR 7.5GHZ

MINI DIN(F) TO N(M) ADAPTOR 7.5GHZ

₹550

  1. Connector Types:
    • Mini DIN Female:
      • Connector Type: Mini DIN
      • Gender: Female (with a central socket and surrounding shield)
      • Size: Smaller than standard DIN connectors, often used in compact or specialized applications.
    • N Male:
      • Connector Type: N-Type
      • Gender: Male (with a central pin and surrounding shield)
      • Size: Larger, commonly used for RF and microwave applications.
  2. Frequency Range:
    • Up to 7.5 GHz: The adapter is designed to perform reliably at frequencies up to 7.5 gigahertz, suitable for a wide range of high-frequency RF and microwave applications.
  3. Impedance:
    • Typically 50 Ohms:
      • Mini DIN Connectors: Impedance can vary, so check the specifications for the specific Mini DIN connector used.
      • N Connectors: Usually 50 ohms, used for standard RF applications. Ensuring impedance matching is crucial to avoid signal reflections and loss.
  4. Mechanical Construction:
    • Material: Generally made from high-quality materials such as brass or stainless steel, often with nickel or gold plating to improve conductivity and resist corrosion.
    • Design: Built to provide a secure and reliable connection between Mini DIN Female and N Male connectors, maintaining signal integrity.
  5. Applications:
    • RF Testing: Connecting RF equipment with Mini DIN and N connectors in testing environments.
    • Communication Systems: Bridging connections between devices or cables with Mini DIN and N connectors in communication systems.
    • Microwave Systems: Connecting components in systems that operate at high frequencies.
    • Specialized Equipment: Where a transition between Mini DIN and N connectors is required.
  6. Typical Features:
    • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
    • Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.
Categories: , Tag:

The Mini DIN(F) to N(M) adaptor is designed for high-frequency RF and signal transmission applications, supporting frequencies up to 7.5GHz. It features a Mini DIN female connector on one end and an N-type male connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |

  • Mini DIN Female to N Male Adapter: This adapter has a Mini DIN Female connector on one end and an N Male connector on the other end. The Mini DIN Female connector is smaller and typically used in more compact or specialized applications. The N Male connector is larger and commonly used in RF and microwave systems. This adapter allows for connecting devices or cables with Mini DIN connectors to those with N connectors, providing flexibility in connecting different types of RF equipment.
  • Frequency Range: 7.5 GHz. This means the adapter is designed to operate effectively up to this frequency, ensuring minimal signal loss and reliable performance for high-frequency applications.
Weight 0.1 kg
