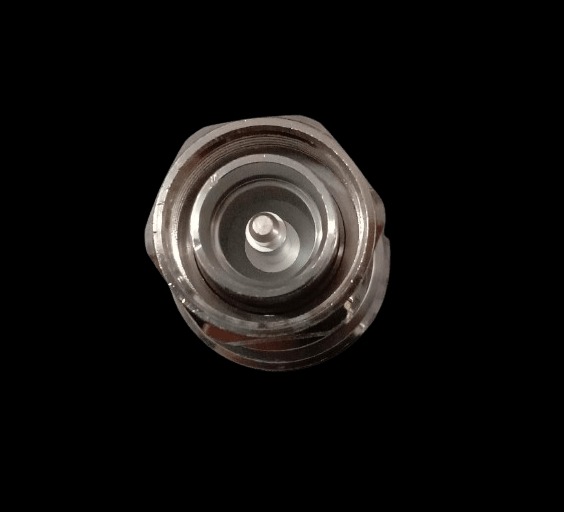

MINI DIN(M) TO DIN(F) ADAPTOR 7.5GHZ

MINI DIN(M) TO DIN(F) ADAPTOR 7.5GHZ

₹550

  1. Connector Types:
    • Mini DIN Male:
      • Connector Type: Mini DIN
      • Gender: Male (with a central pin and surrounding shield)
      • Size: Smaller and more compact than standard DIN connectors, designed for specific or space-constrained applications.
    • DIN Female:
      • Connector Type: DIN
      • Gender: Female (with a central socket and surrounding shield)
      • Size: Standard DIN connector size used in various RF and communication systems.
  2. Frequency Range:
    • Up to 7.5 GHz: Designed for reliable operation up to 7.5 gigahertz, making it suitable for high-frequency RF and communication applications.
  3. Impedance:
    • Typically 50 Ohms:
      • Mini DIN Connectors: Impedance can vary depending on the specific type, so verify the impedance specification.
      • DIN Connectors: Typically 50 ohms for RF applications. Ensuring impedance matching is crucial to prevent signal reflections and ensure efficient signal transfer.
  4. Mechanical Construction:
    • Material: Made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to improve conductivity and resist corrosion.
    • Design: Built to provide a secure and reliable connection between Mini DIN Male and DIN Female connectors, maintaining signal integrity.
  5. Applications:
    • RF Testing: Connecting or extending RF equipment that uses Mini DIN and DIN connectors in test setups.
    • Communication Systems: Bridging connections between devices or cables with Mini DIN and DIN connectors.
    • Microwave Systems: Facilitating connections in high-frequency microwave systems.
    • Specialized Equipment: Connecting or transitioning between components with Mini DIN and DIN connectors.
  6. Typical Features:
    • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
    • Durability: Built to handle frequent connections and disconnections, providing reliable performance over time.
Categories: , Tag:

 This Mini DIN(M) to DIN(F) adaptor is designed for high-frequency RF and signal transmission applications, supporting frequencies up to 7.5GHz. It features a Mini DIN male connector on one end and a DIN female connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |

  • Mini DIN Male to DIN Female Adapter: This adapter features a Mini DIN Male connector on one end and a DIN Female connector on the other end. The Mini DIN Male connector is a smaller, compact connector used in various applications, while the DIN Female connector is a standard-sized connector used in many RF and communication systems. This adapter enables connections between devices or cables with Mini DIN Male connectors and DIN Female connectors.
  • Frequency Range: 7.5 GHz. This indicates that the adapter is designed to perform effectively up to this frequency, ensuring minimal signal loss and reliable operation in high-frequency applications.
Weight 0.1 kg
