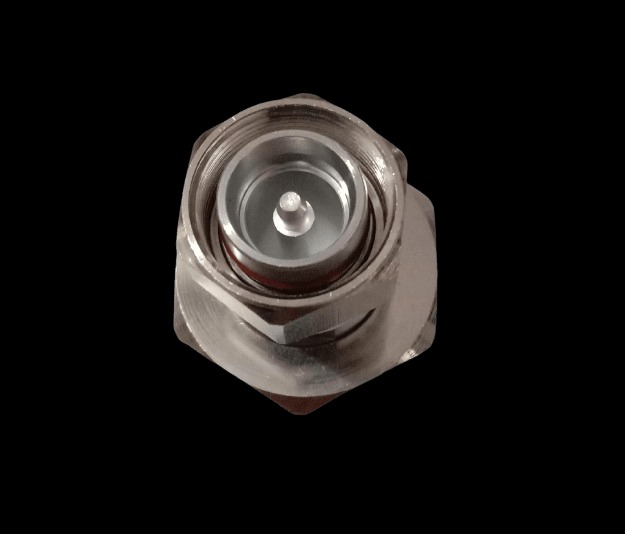

MINI DIN(M) TO DIN(M) ADAPTOR 7.5GHZ

1. Connector Types:
   • Mini DIN Male:
     • Connector Type: Mini DIN
     • Gender: Male (with a central pin and surrounding shield)
     • Size: Smaller and more compact compared to standard DIN connectors, intended for specialized or space-constrained applications.
   • DIN Male:
     • Connector Type: DIN (Deutsches Institut für Normung)
     • Gender: Male (with a central pin and surrounding shield)
     • Size: Standard DIN size used in various RF and communication applications.
2. Frequency Range:
   • Up to 7.5 GHz: Designed for operation up to 7.5 gigahertz, suitable for high-frequency RF and microwave systems.
3. Impedance:
   • Typically 50 Ohms:
     • Mini DIN Connectors: Impedance can vary depending on the specific type, so it’s important to verify the impedance specification for the Mini DIN connector used.
     • DIN Connectors: Typically 50 ohms, used for standard RF applications. Proper impedance matching is crucial to avoid signal reflections and ensure efficient signal transfer.
4. Mechanical Construction:
   • Material: Constructed from high-quality materials such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Built to provide a secure and reliable connection between Mini DIN Male and DIN Male connectors, maintaining signal integrity.
5. Applications:
   • RF Testing: Connecting or extending RF equipment with Mini DIN and DIN connectors in testing environments.
   • Communication Systems: Bridging connections between devices or cables with Mini DIN and DIN connectors.
   • Microwave Systems: Facilitating connections in high-frequency microwave systems.
   • Specialized Equipment: Where a transition between Mini DIN and DIN connectors is required.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your equipment to prevent signal issues and reflections. Verify the impedance specification for Mini DIN connectors used in your application.
• Check Frequency Range: Ensure the adapter’s frequency range (up to 7.5 GHz) is suitable for your application. For higher frequencies, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the Mini DIN Male and DIN Male connectors to avoid loose connections that can lead to signal problems.
• Inspect Regularly: Periodically check the adapter for any signs of wear or damage to ensure continued optimal performance.

This Mini DIN Male to DIN Male Adapter is a practical solution for connecting or transitioning between Mini DIN and DIN connectors, making it suitable for RF testing, communication systems, microwave applications, and other high-frequency uses where reliable, minimal-loss connections are essential.
