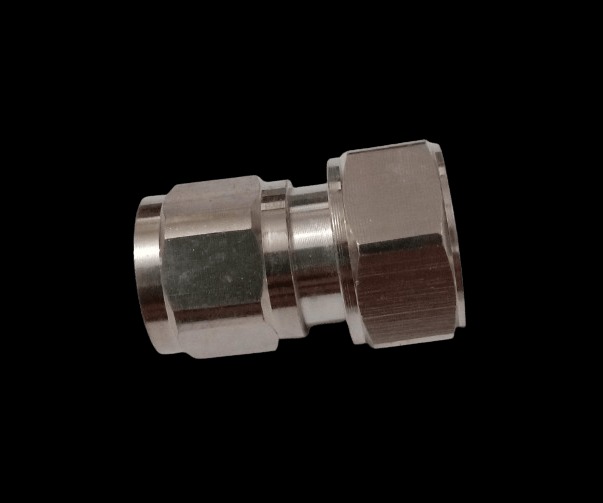

MINI DIN(M) TO N(M) ADAPTOR 7.5GHZ
- Connector Types:
- Mini DIN Male:
- Connector Type: Mini DIN
- Gender: Male (with a central pin and surrounding shield)
- Size: Smaller and more compact than standard DIN connectors, designed for specialized or space-constrained applications.
- N Male:
- Connector Type: N-Type
- Gender: Male (with a central pin and surrounding shield)
- Size: Larger and commonly used for RF and microwave systems, known for its durability and performance.
- Mini DIN Male:
- Frequency Range:
- Up to 7.5 GHz: The adapter is designed to perform reliably up to 7.5 gigahertz, making it suitable for high-frequency RF and microwave applications.
- Impedance:
- Typically 50 Ohms:
- Mini DIN Connectors: Impedance can vary depending on the specific type, so it is essential to verify the impedance specification for the Mini DIN connector.
- N Connectors: Usually 50 ohms, used for standard RF applications. Proper impedance matching is important to avoid signal reflections and ensure efficient signal transfer.
- Typically 50 Ohms:
- Mechanical Construction:
- Material: Constructed from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
- Design: Designed to provide a secure and reliable connection between Mini DIN Male and N Male connectors, maintaining signal integrity.
- Applications:
- RF Testing: Connecting or extending RF equipment that uses Mini DIN and N connectors in test setups.
- Communication Systems: Bridging connections between devices or cables with Mini DIN and N connectors in communication systems.
- Microwave Systems: Facilitating connections in high-frequency microwave systems.
- Specialized Equipment: Where a transition between Mini DIN and N connectors is needed.
- Typical Features:
- Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
- Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.
Usage Tips:
- Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your equipment to prevent signal issues and reflections. Verify the impedance specification for Mini DIN connectors used in your application.
- Check Frequency Range: Ensure the adapter’s frequency range (up to 7.5 GHz) is suitable for your application. For frequencies higher than 7.5 GHz, consider an adapter with a higher frequency rating.
- Ensure Secure Connections: Properly connect the Mini DIN Male and N Male connectors to avoid loose connections that can lead to signal problems.
- Inspect Regularly: Periodically check the adapter for wear or damage to ensure continued optimal performance.
This Mini DIN Male to N Male Adapter is a versatile component for connecting or transitioning between Mini DIN and N connectors, making it suitable for RF testing, communication systems, microwave applications, and other high-frequency uses where reliable, minimal-loss connections are essential.
₹599 ₹550
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The Mini DIN(M) to N(M) adaptor is designed for high-frequency RF and signal transmission applications, supporting frequencies up to 7.5GHz. It features a Mini DIN male connector on one end and an N-type male connector on the other, allowing for easy interfacing between different connector types. This adaptor is ideal for use in telecommunications, broadcast systems, and test equipment, providing reliable signal transfer with minimal insertion loss. Its durable construction ensures long-term performance in both laboratory and field environments. |
- Mini DIN Male to N Male Adapter: This adapter features a Mini DIN Male connector on one end and an N Male connector on the other end. The Mini DIN Male connector is a compact, space-saving connector used in various electronic applications, while the N Male connector is a larger, robust connector commonly used in RF and microwave applications. This adapter facilitates the connection between devices or cables with Mini DIN connectors and N connectors.
- Frequency Range: 7.5 GHz. This indicates that the adapter is designed to operate effectively up to this frequency, ensuring reliable signal transmission with minimal signal loss.
Weight | 0.1 kg |
---|
