M (Male) Connector**: In the context of coaxial connectors, “M” stands for male. A male connector has protruding pins or a center conductor that fits into a female connector.
LMR 200 Cable**: This is a type of coaxial cable designed for RF communication. The “LMR” series, manufactured by Times Microwave Systems, is known for its low loss and durability. The LMR 200 is a thinner version, suitable for applications where flexibility and space are important.
CRIMP**: Crimping is a method used to attach connectors to the ends of cables. A crimping tool is used to press the connector onto the cable, ensuring a secure and reliable electrical connection.
To assemble a MINI UHF male connector onto an LMR 200 cable using crimping:
Prepare the Cable**: Strip the outer insulation and shield from the cable end, leaving a section of the inner dielectric and center conductor exposed. Make sure to expose just enough of the center conductor for the connector.
Attach the Connector**: Slide the MINI UHF connector parts onto the cable. The center conductor should fit into the connector’s pin, and the cable shield should be properly aligned with the connector’s body.
Crimp the Connector**: Use a crimping tool to crimp the connector onto the cable. Ensure that the crimping is done securely so that the connector is firmly attached to the cable and the electrical connection is reliable.
Check the Assembly**: Verify that the connector is properly attached and that there are no loose parts. It’s often a good idea to test the connection for continuity and proper signal transmission.

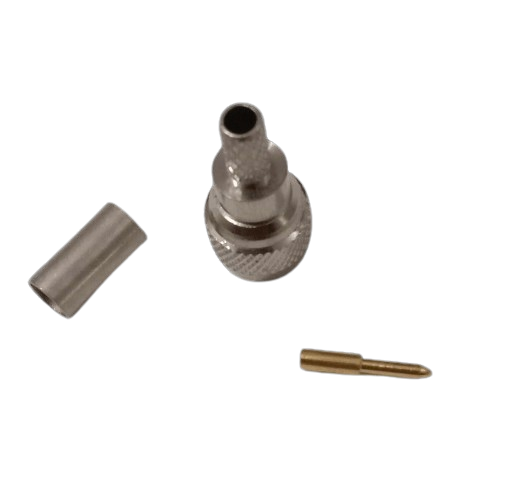

The Mini UHF Male LMR 200 Crimp connector is designed for applications requiring compact size and reliable performance. It features a crimp termination for secure and efficient cable attachment. This connector supports LMR 200 cables, offering low loss and flexibility, making it ideal for various RF applications. Its robust construction ensures durability, while the precise design guarantees optimal signal integrity. Suitable for use in wireless communication systems, the Mini UHF connector provides excellent connectivity and is widely used in installations where space is limited but high performance is necessary. |This is a type of coaxial connector used for RF (radio frequency) applications. MINI UHF connectors are smaller than the standard UHF connectors and are often used in applications where space is a concern.
Weight
0.1 kg
