Categories All Products, Antenna Tag MOBILE ANTENNA 806-869 Mhz

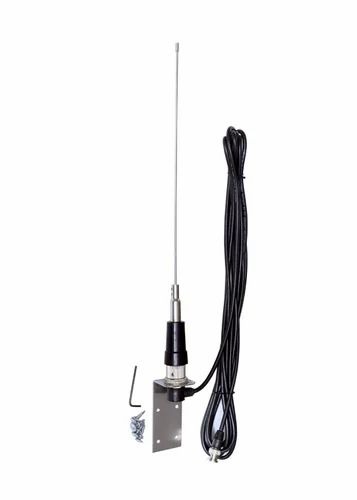

MOBILE ANTENNA 806-869 Mhz

Frequency Range	806-869 MHz
Bandwidth	64 MHz
Gain	3 dBi
Half-Power Beamwidth (Horizontal)	360 degree
VSWR	< 1.5
Input Impedance	50 Ohm
Polarization	Vertical
Maximum Power	50 Watt
Radiation Pattern	Omnidirectional
Connector Type	MiniUHF / TNC or CS

Mechanical Data
Mounting Mast Diameter	32 – 60 mm
Maximum Wind Velocity	200 km/hr

⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available

💰 Lowest Prices

The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

Frequency Range: 806 MHz to 869 MHz — ideal for GSM/CDMA/LTE and land-mobile communications in the 800 MHz band. Justdial
Gain: ~3 dBi — provides modest signal reinforcement without overly focusing the radiation, making it suitable for general mobile use.
Radiation Pattern: Omnidirectional — radiates signal in all horizontal directions (360°), providing uniform coverage around the antenna.
Polarization: Vertical — optimized for vertical signal transmission and reception common in mobile systems.
Impedance: 50 Ω — standard for wireless RF systems and compatible with most mobile radios and repeaters.
VSWR: Typically low (close to 1.5:1 or better) for efficient power transfer and minimal signal reflection.
