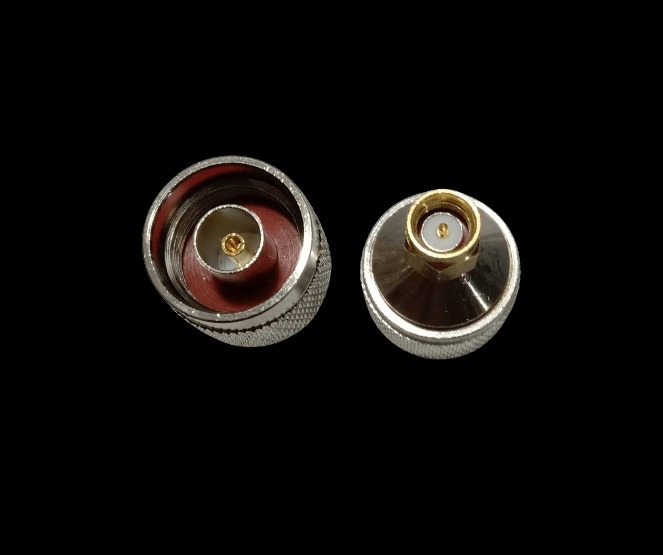

N M TO SMA M RP ADAPTOR 4GHZ

1. Connector Types:
   • N Male:
     • Connector Type: N-Type
     • Gender: Male (with a central pin and threaded shield)
     • Size: A robust, standard RF connector known for its reliability in high-frequency applications.
   • SMA Male Reverse Polarity (RP):
     • Connector Type: SMA RP (Reverse Polarity)
     • Gender: Male (with a central pin and threaded shield)
     • Size: A small, precision RF connector designed with reversed polarity to prevent connections with standard SMA connectors.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively at frequencies up to this range, making it suitable for RF and microwave applications within this frequency limit.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, which is standard for many RF applications. Ensuring proper impedance matching is crucial to avoid signal reflections and maintain signal integrity.
     • SMA RP Connectors: Also typically 50 ohms, ensuring compatibility with RF systems that use both N and SMA RP connectors.
4. Mechanical Construction:
   • Material: Made from high-quality materials such as brass or stainless steel, with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: The adapter is engineered to provide a secure and reliable connection between N Male and SMA RP Male connectors while maintaining performance up to 4 GHz.
5. Applications:
   • RF Testing: Useful for connecting or extending RF equipment with N and SMA RP connectors in test setups where reverse polarity SMA connections are required.
   • Communication Systems: Facilitates connections in communication systems that utilize both N and SMA RP connectors.
   • Microwave Systems: Provides connectivity in microwave systems where reverse polarity SMA connections are needed.
   • Antenna Systems: Allows for connections between antennas and devices with N and SMA RP connectors, supporting high-frequency RF applications.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • High Frequency Performance: Capable of operating up to 4 GHz, suitable for RF and microwave systems requiring such frequency performance.
   • Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) meets the requirements of your application. For applications requiring higher frequencies, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the N Male and SMA RP Male connectors to avoid loose connections, which can cause signal degradation or interruption.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to ensure continued optimal performance.

This N Male to SMA Male Reverse Polarity (RP) Adapter 4 GHz is a high-performance component designed to connect or extend RF systems requiring reverse polarity SMA connections, providing reliable and efficient connectivity with excellent signal integrity up to 4 GHz.
