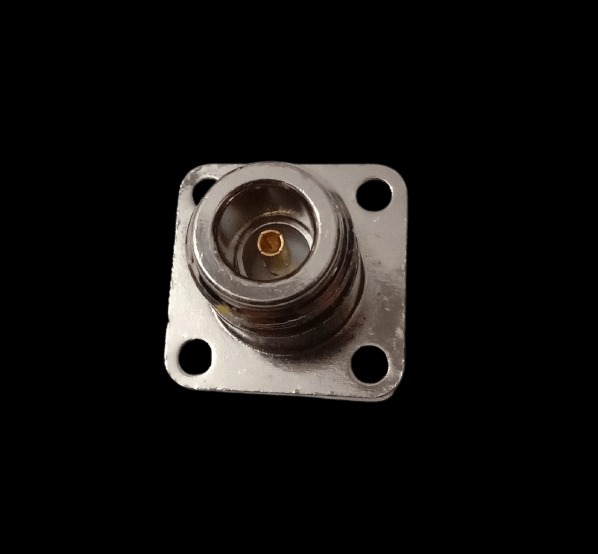

N(F) TO N(F) 4H ADAPTOR 4GHZ

1. Connector Types:
   • N Female:
     • Connector Type: N-Type
     • Gender: Female (with a central socket and surrounding threaded shield for connection)
     • Size: Standard size for RF and microwave systems, known for its durability and performance.
   • 4-Hole Mount:
     • Mounting Style: Includes four holes for secure mounting to a panel or chassis. This design provides stability and is often used in permanent installations.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate reliably up to 4 gigahertz, making it suitable for RF and microwave applications within this frequency range.
3. Impedance:
   • Typically 50 Ohms:
     • N Connectors: Standard for 50-ohm systems, ensuring proper impedance matching to avoid signal reflections and losses.
4. Mechanical Construction:
   • Material: Constructed from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Engineered for secure mounting with the 4-hole flange design, maintaining signal integrity and providing a stable connection.
5. Applications:
   • RF Testing: Connecting or extending RF equipment with N Male connectors in test setups where a panel mount is needed.
   • Communication Systems: Bridging connections between devices with N Male connectors in communication systems with secure mounting.
   • Microwave Systems: Facilitating connections in high-frequency microwave systems with panel or chassis mounting.
   • Permanent Installations: Used in installations where a robust, secure connection is required.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.
   • Secure Mounting: The 4-hole flange design allows for secure attachment to panels or chassis, reducing the risk of movement or disconnection.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) is suitable for your application. For higher frequencies, consider an adapter with a higher frequency rating.
• Ensure Secure Mounting: Use appropriate screws and mounting hardware to secure the adapter to a panel or chassis, ensuring a stable and reliable connection.
• Inspect Regularly: Periodically check the adapter and mounting for signs of wear or damage to ensure continued optimal performance.

This N Female to N Female 4-Hole Adapter is a versatile and durable component for connecting or transitioning between N Male connectors with the added benefit of a secure mounting option, making it suitable for RF testing, communication systems, microwave applications, and permanent installations where reliable connections are essential.
