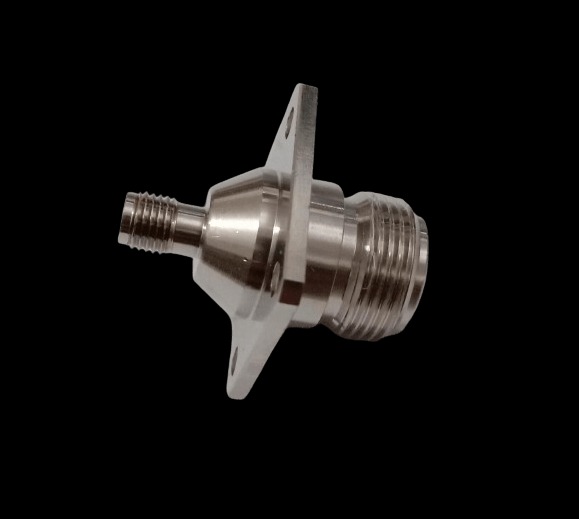

N(F) TO SMA(F) 4H ADAPTOR 4GHZ

1. Connector Types:
   • N Female:
     • Connector Type: N-Type
     • Gender: Female (with a central socket and surrounding threaded shield for connection)
     • Size: Standard size used in RF and microwave systems, known for durability and performance.
   • SMA Female:
     • Connector Type: SMA (SubMiniature version A)
     • Gender: Female (with a central socket and surrounding threaded shield for connection)
     • Size: Compact size used in high-frequency RF applications.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively up to 4 gigahertz, making it suitable for RF and microwave systems within this frequency range.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, standard for many RF applications. Ensure the impedance of the adapter matches your system to avoid signal reflections and losses.
     • SMA Connectors: Also commonly 50 ohms. Consistent impedance matching is crucial for optimal performance.
4. Mechanical Construction:
   • Material: Constructed from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Includes a 4-hole bulkhead design on one side, allowing secure mounting to panels or enclosures, which provides a stable and permanent connection.
5. Applications:
   • RF Testing: Used to connect or extend RF equipment with N Male and SMA Male connectors in test setups.
   • Communication Systems: Facilitates connections between devices or cables with N Male and SMA Male connectors in communication systems.
   • Microwave Systems: Provides a connection in high-frequency microwave systems where a bulkhead mount is needed.
   • Permanent Installations: Ideal for setups where a secure, panel-mounted connection is required.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Durability: Built to withstand frequent connections and disconnections, ensuring reliable performance over time.
   • Secure Mounting: The 4-hole bulkhead design allows for secure attachment to panels or chassis, reducing the risk of movement or disconnection.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to prevent signal reflections and losses.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) is suitable for your application. For higher frequencies, consider an adapter with a higher frequency rating.
• Ensure Secure Mounting: Use appropriate mounting hardware to securely attach the adapter to a panel or chassis, ensuring a stable and reliable connection.
• Inspect Regularly: Periodically check the adapter and mounting for wear or damage to ensure continued optimal performance.

This N Female to SMA Female 4-Hole Adapter is a versatile and durable component designed for transitioning between N and SMA connectors with the added benefit of a secure, panel-mountable design, making it suitable for RF testing, communication systems, microwave applications, and permanent installations where reliability and stability are essential.
