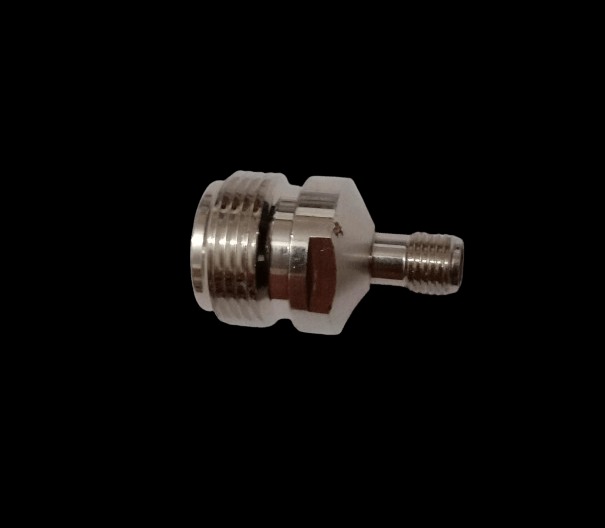

N(F) TO SMA(F) ADAPTOR 18GHZ

1. Connector Types:
   • N Female:
     • Connector Type: N-Type
     • Gender: Female (with a central socket and surrounding threaded shield for connection)
     • Size: Standard size used in various RF and microwave applications, known for durability and robustness.
   • SMA Female:
     • Connector Type: SMA (SubMiniature version A)
     • Gender: Female (with a central socket and surrounding threaded shield for connection)
     • Size: Compact size used for high-frequency RF applications, designed for precision and performance.
2. Frequency Range:
   • Up to 18 GHz: Designed to handle frequencies up to 18 gigahertz, making it suitable for advanced RF and microwave applications, including those requiring high-frequency performance.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, standard for many RF applications. Ensure impedance matching to avoid signal reflections and losses.
     • SMA Connectors: Also commonly 50 ohms. Consistent impedance is crucial for optimal signal performance.
4. Mechanical Construction:
   • Material: Made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Engineered to provide a reliable and secure connection between N Female and SMA Female connectors, maintaining signal integrity at high frequencies.
5. Applications:
   • RF Testing: Connecting or extending RF equipment with N Male and SMA Male connectors in test setups where high-frequency performance is required.
   • Communication Systems: Bridging connections between devices or cables with N Male and SMA Male connectors in advanced communication systems.
   • Microwave Systems: Facilitating connections in high-frequency microwave systems, where precise and stable performance is essential.
   • Antenna Systems: Connecting antennas with N Male and SMA Male connectors in high-frequency RF applications.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors at high frequencies.
   • High Frequency Performance: Capable of handling frequencies up to 18 GHz with minimal loss, suitable for advanced RF and microwave systems.
   • Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to prevent signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 18 GHz) meets the requirements of your application. For lower frequencies, a different adapter might be sufficient.
• Ensure Secure Connections: Properly connect the N Male and SMA Male connectors to avoid loose connections that can lead to signal degradation.
• Inspect Regularly: Periodically check the adapter for wear or damage to ensure continued optimal performance.

This N Female to SMA Female Adapter 18 GHz is a high-performance component designed for advanced RF and microwave applications, offering reliable connectivity between N and SMA connectors with excellent signal integrity at frequencies up to 18 gigahertz. It is ideal for RF testing, communication systems, microwave systems, and other high-frequency applications where precise and stable connections are essential.
