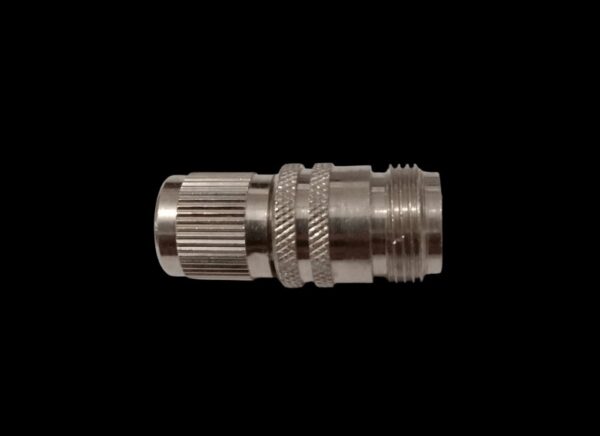

N(F) TO TNC(M) ADAPTOR 4GHZ

1. Connector Types:
   • N Female:
     • Connector Type: N-Type
     • Gender: Female (with a central socket and threaded shield for connection)
     • Size: Standard size used in RF and microwave systems, known for durability and robust performance.
   • TNC Male:
     • Connector Type: TNC (Threaded Neill-Concelman)
     • Gender: Male (with a central pin and surrounding threaded shield for connection)
     • Size: Compact and threaded version of the BNC connector, providing a more secure connection.
2. Frequency Range:
   • Up to 4 GHz: Designed to handle frequencies up to 4 gigahertz, making it suitable for RF and communication systems within this frequency range.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, standard for many RF applications. Ensure impedance matching to avoid signal reflections and losses.
     • TNC Connectors: Also commonly 50 ohms. Consistent impedance is essential for optimal signal performance.
4. Mechanical Construction:
   • Material: Constructed from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Engineered to provide a secure and reliable connection between N Female and TNC Male connectors, maintaining signal integrity.
5. Applications:
   • RF Testing: Connecting or extending RF equipment with N Male and TNC Female connectors in test setups where a transition between connector types is required.
   • Communication Systems: Facilitating connections between devices or cables with N Male and TNC Female connectors in communication systems.
   • Microwave Systems: Providing connections in RF and microwave systems where compatibility between different connector types is needed.
   • Antenna Systems: Bridging connections between antennas with N Male and TNC Female connectors.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Durability: Built to withstand frequent connections and disconnections, providing reliable performance over time.
   • Secure Connection: Ensures a firm connection between different types of connectors, reducing the risk of signal loss or interruption.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to prevent signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) is suitable for your application. For higher frequencies, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the N Male and TNC Female connectors to avoid loose connections that can lead to signal problems.
• Inspect Regularly: Periodically check the adapter for wear or damage to ensure continued optimal performance.

This N Female to TNC Male Adapter 4 GHz is a practical and reliable component for transitioning between N and TNC connectors. It is suitable for RF testing, communication systems, microwave systems, and other applications where a secure and minimal-loss connection is required.
