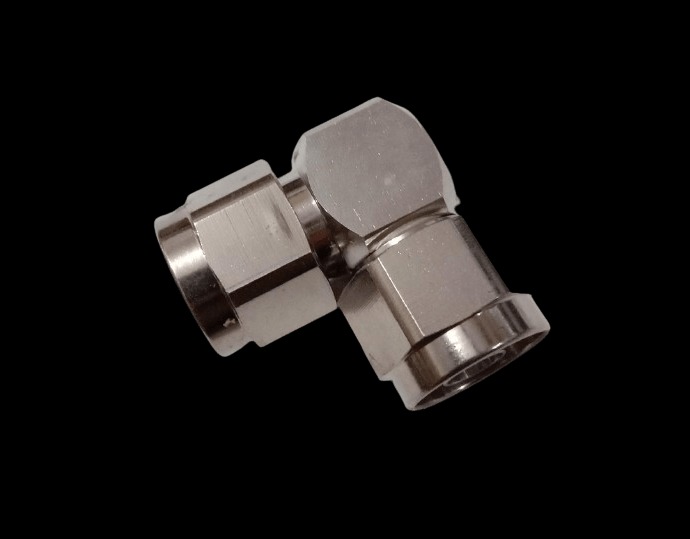

N(M) TO N(M) RA ADAPTOR 4GHZ

1. Connector Types:
   • N Male:
     • Connector Type: N-Type
     • Gender: Male (with a central pin and threaded shield)
     • Size: A robust RF connector known for its durability and performance in high-frequency applications.
   • Right-Angle Design:
     • Configuration: The adapter has a 90-degree angle between the input and output connectors, which helps in space-constrained environments and reduces stress on cables.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively up to this frequency, making it suitable for RF and communication systems operating within this frequency range.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, which is standard for many RF applications. Proper impedance matching is essential to prevent signal reflections and ensure efficient signal transfer.
4. Mechanical Construction:
   • Material: Constructed from high-quality metals such as brass or stainless steel, with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: The right-angle design reduces stress on cables and connectors, providing a reliable and secure connection while maintaining performance up to 4 GHz.
5. Applications:
   • RF Testing: Useful for connecting or extending RF equipment in setups where space is limited and a right-angle connector is necessary.
   • Communication Systems: Facilitates connections in communication systems where space constraints or cable routing requires a right-angle connector.
   • Microwave Systems: Provides connectivity in microwave systems where a compact connector is needed, maintaining performance up to 4 GHz.
   • Antenna Systems: Allows for flexible connections in antenna systems where a right-angle design can help in routing and installation.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Space-Saving Design: The right-angle configuration helps in managing space and cable routing effectively.
   • Durability: Built to withstand frequent connections and disconnections, ensuring reliable long-term performance.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal reflections and maintain optimal performance.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) meets the requirements of your application. For higher frequency applications, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the N Male connectors to avoid loose connections that can lead to signal degradation.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to ensure continued optimal performance.

This N Male to N Male Right-Angle (RA) Adapter 4 GHz is designed for efficient connectivity and space management in RF and microwave systems, offering reliable performance up to 4 GHz with a space-saving right-angle design.
