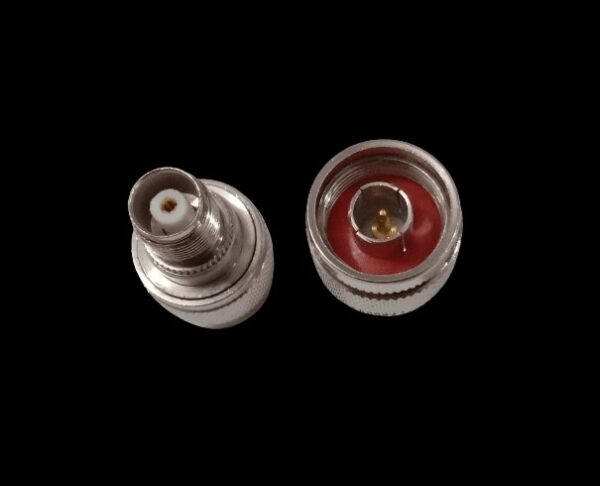

N(M) TO TNC(F) ADAPTOR 4GHZ

1. Connector Types:
   • N Male:
     • Connector Type: N-Type
     • Gender: Male (with a central pin and threaded shield)
     • Size: A durable and reliable RF connector known for its robustness in various RF applications.
   • TNC Female:
     • Connector Type: TNC (Threaded Neill-Concelman)
     • Gender: Female (with a central socket and threaded shield)
     • Size: A small, threaded RF connector designed for higher frequency applications, similar to the BNC connector but with a threaded coupling mechanism for more secure connections.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively at frequencies up to this range, making it suitable for RF and communication systems operating within this frequency limit.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, which is standard for many RF applications. Proper impedance matching is crucial to avoid signal reflections and maintain signal integrity.
     • TNC Connectors: Also typically 50 ohms, ensuring compatibility with RF systems that use both N and TNC connectors.
4. Mechanical Construction:
   • Material: Constructed from high-quality materials such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Engineered to provide a secure and reliable connection between N Male and TNC Female connectors, ensuring performance up to 4 GHz.
5. Applications:
   • RF Testing: Useful for connecting or extending RF equipment with N and TNC connectors in test setups where up to 4 GHz performance is required.
   • Communication Systems: Facilitates connections in communication systems that use both N and TNC connectors.
   • Antenna Systems: Allows for connections between antennas and devices with N and TNC connectors, supporting RF applications up to 4 GHz.
   • Microwave Systems: Provides connectivity in microwave systems where N and TNC connectors are used.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer between connectors.
   • Reliable Performance: Capable of operating effectively up to 4 GHz, suitable for a range of RF and communication systems.
   • Durability: Built to withstand frequent connections and disconnections, ensuring reliable long-term performance.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) meets the requirements of your application. For applications requiring higher frequencies, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the N Male and TNC Female connectors to avoid loose connections that can lead to signal degradation.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to maintain optimal performance.

This N Male to TNC Female Adapter 4 GHz provides a high-performance solution for connecting RF and communication systems, offering reliable and efficient connectivity with excellent signal integrity and durability up to 4 GHz.
