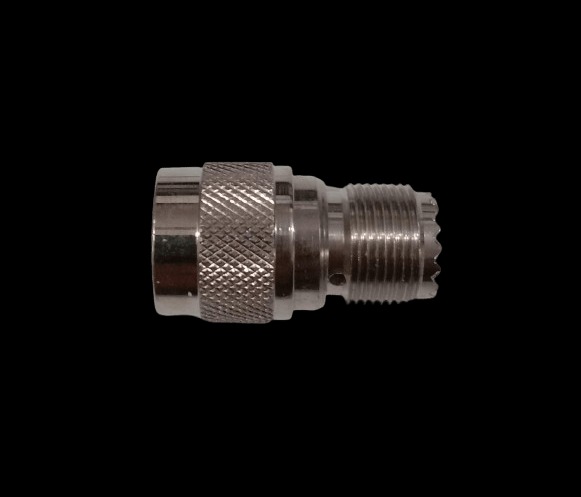

N(M) TO UHF(F) ADAPTOR 4GHZ

1. Connector Types:
   • N Male:
     • Connector Type: N (N-type)
     • Gender: Male (with a central pin and external threads)
     • Size: A robust and reliable RF connector known for its durability and performance in various frequency ranges.
   • UHF Female:
     • Connector Type: UHF (Ultra High Frequency)
     • Gender: Female (with a central socket and external threads)
     • Size: A versatile RF connector with a bayonet-style coupling mechanism, commonly used in various RF and communication systems.
2. Frequency Range:
   • Up to 4 GHz: Designed to operate effectively at frequencies up to 4 GHz, suitable for RF and communication applications within this frequency range.
3. Impedance:
   • 50 Ohms:
     • N Connectors: Typically 50 ohms, which is standard for many RF applications. Proper impedance matching is crucial to avoid signal reflections and ensure efficient signal transfer.
     • UHF Connectors: Traditionally used with 50-ohm systems, but UHF connectors can sometimes be found in 75-ohm systems as well. Ensure that both connectors match the impedance of your system.
4. Mechanical Construction:
   • Material: Constructed from high-quality metals such as brass or stainless steel, often with nickel or gold plating to enhance conductivity and resist corrosion.
   • Design: Engineered to provide a secure and reliable connection between N Male and UHF Female connectors, ensuring good performance up to the specified frequency range.
5. Applications:
   • RF Testing: Useful for connecting or extending RF equipment with N and UHF connectors in test setups requiring up to 4 GHz performance.
   • Communication Systems: Facilitates connections in communication systems that use both N and UHF connectors.
   • Antenna Systems: Allows for connections between antennas with N and UHF connectors, suitable for RF applications up to 4 GHz.
   • Broadcasting: Commonly used in broadcasting and communication systems where UHF and N connectors are utilized.
6. Typical Features:
   • Low Signal Loss: Designed to minimize signal degradation and ensure efficient signal transfer, which is important for maintaining signal integrity.
   • Reliable Performance: Capable of operating effectively up to 4 GHz, suitable for a range of RF and communication systems.
   • Durability: Built to withstand frequent connections and disconnections, ensuring long-term reliability.

Usage Tips:

• Confirm Impedance Matching: Ensure that the impedance of the adapter (typically 50 ohms) matches the impedance of your system to avoid signal issues and reflections.
• Check Frequency Range: Verify that the adapter’s frequency range (up to 4 GHz) meets the requirements of your application. For higher frequency applications, consider an adapter rated for those frequencies.
• Ensure Secure Connections: Properly connect the N Male and UHF Female connectors to avoid loose connections that can lead to signal degradation.
• Inspect Regularly: Periodically check the adapter for signs of wear or damage to maintain optimal performance.

This N Male to UHF Female Adapter 4 GHz provides a reliable solution for connecting RF and communication systems, offering good performance and signal integrity up to 4 GHz.
