Design Concept:

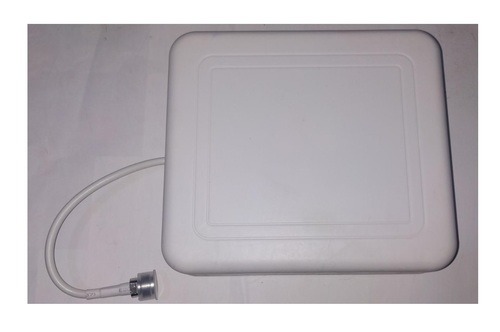

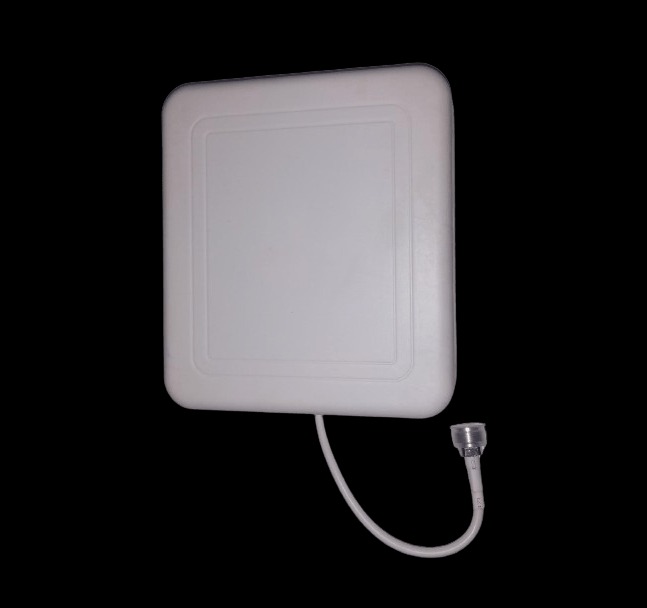

Patch Panel Antenna: A flat, rectangular or square antenna known for its compact design and ability to provide directional or semi-directional coverage. It typically consists of a conductive patch on a dielectric substrate.
Wide Frequency Range: Covers a broad range of frequencies, making it suitable for various communication technologies.
Key Features:
Gain:
8 dBi Gain: Provides a high level of signal amplification, which enhances coverage and signal strength over longer distances compared to lower gain antennas. This makes it ideal for improving connectivity in challenging environments.
Frequency Range:
698-2700 MHz: This wide frequency range covers multiple communication bands, including those used by cellular networks (such as 4G LTE and potentially 5G), Wi-Fi, and other wireless technologies.
Radiation Pattern:
Directional or Semi-Directional: Provides a focused radiation pattern, which helps in targeting specific areas or improving signal quality in a particular direction. This is different from omnidirectional antennas, which offer 360-degree coverage.
Construction:
Flat and Compact Design: Typically rectangular or square with a slim profile, making it suitable for mounting on walls, ceilings, or other surfaces. Made from materials like fiberglass or plastic with a metal element for the radiating part.
Durable Materials: Designed to be weather-resistant and durable, especially if intended for outdoor use.
Design Specifications:
Frequency Range:
698-2700 MHz: Suitable for various wireless communication technologies and applications, including cellular, Wi-Fi, and other systems operating within this frequency band.
Gain:
8 dBi Gain: Provides significant signal enhancement, which can improve the coverage and strength of the wireless signal, making it suitable for both indoor and outdoor applications.
Size and Shape:
Compact and Flat: The antenna’s design allows for easy installation in various environments. The exact dimensions will depend on the manufacturer’s design, but it remains compact relative to its performance.
Connector Types:
Common Connectors: Includes options like N-type, SMA, or other connectors based on the equipment and installation requirements.
Installation:
Mounting:
Wall or Surface Mount: Designed to be mounted on walls, ceilings, or other flat surfaces. Ensure the surface is clean and suitable for mounting.
Orientation: Position the antenna to align with the coverage area or signal source for optimal performance.
Connection:
Coaxial Cable: Connect the antenna to the network equipment using the appropriate coaxial cable and connector. Ensure all connections are secure and weatherproofed if used in outdoor environments.
Testing:
Coverage and Performance: After installation, test the antenna to ensure it provides the desired coverage and signal strength. Adjust placement or orientation as needed.
Applications:
Cellular Networks: Ideal for use in cellular base stations, repeaters, and other infrastructure to enhance signal strength and coverage.
Wi-Fi Networks: Can improve Wi-Fi coverage and performance in specific areas or challenging environments.
General Wireless Communication: Suitable for any application requiring coverage within the 698-2700 MHz frequency range.
Maintenance:
Regular Inspection: Check the antenna and its connections periodically for signs of wear, damage, or corrosion.
Cleaning: Keep the antenna clean and free from debris to maintain optimal performance.
Considerations:
Directional Pattern: The patch panel antenna has a more focused radiation pattern compared to omnidirectional antennas. Ensure the installation is optimized for the intended coverage area.
Network Compatibility: Verify that the antenna’s specifications align with the frequency bands and requirements of your network or application.
A patch panel antenna with 8 dBi gain and a frequency range of 698-2700 MHz, particularly if designed for Huawei equipment, offers high performance and broad frequency coverage, making it suitable for a range of wireless communication needs.
