QMA M RA LMR 200 CRIMP

QMA M RA LMR 200 CRIMP

₹125

  1. Connector Type:
    • QMA Male Right-Angle Crimp: A male QMA connector with a right-angle design, designed to be crimped onto LMR-200 coaxial cables.
  2. Cable Compatibility:
    • LMR-200 Coaxial Cable: The connector is designed to be used with LMR-200 coaxial cables, which are popular in RF applications for their low attenuation and flexibility.
  3. Crimping Method:
    • Crimp: The connector is attached using a crimping tool. The crimping process involves inserting the prepared LMR-200 cable into the connector and compressing it with a crimping tool to secure the connection.
  4. Material:
    • Body: Typically made from high-quality metals such as brass or stainless steel, often with nickel or gold plating to improve conductivity and resist corrosion.
    • Contacts: Constructed from conductive materials with plating to ensure minimal signal loss and reliable performance.
  5. Impedance:
    • 50 Ohms: Designed to match the impedance of LMR-200 coaxial cables, which is crucial for maintaining signal integrity and minimizing signal loss.
  6. Frequency Range:
    • High Frequency: QMA connectors are suitable for high-frequency applications, generally operating from DC up to several GHz, depending on the connector design and application.
  7. Dimensions:
    • Right-Angle Design: The right-angle configuration helps in efficient cable routing and space management, especially in compact or constrained environments.
  8. Usage:
    • Applications: Commonly used in RF and microwave systems, including communication devices, antennas, and other electronic systems where reliable and compact RF connections are required.
    • Common Uses: Connecting RF components in scenarios where a right-angle configuration is advantageous for cable routing or space constraints.
  9. Installation:
    • Tools Required: Crimping tool, cable stripper, and possibly a coaxial cable cutter.
    • Procedure: Strip the insulation from the LMR-200 cable, insert the cable into the connector, and use a crimping tool to compress the connector onto the cable. Ensure proper alignment to maintain signal integrity and a secure connection.
Categories: , , Tag:

The QMA M RA LMR 200 crimp connector is a right-angle male connector designed for use with LMR 200 coaxial cables. This connector features a crimp attachment method, ensuring a secure and reliable connection in RF systems. It is ideal for applications where space is limited, and an angled connection is required, such as in antennas, communication devices, and other high-frequency systems. The QMA M RA LMR 200 crimp connector is known for its durability and ease of installation, making it a popular choice in both commercial and industrial RF applications. |

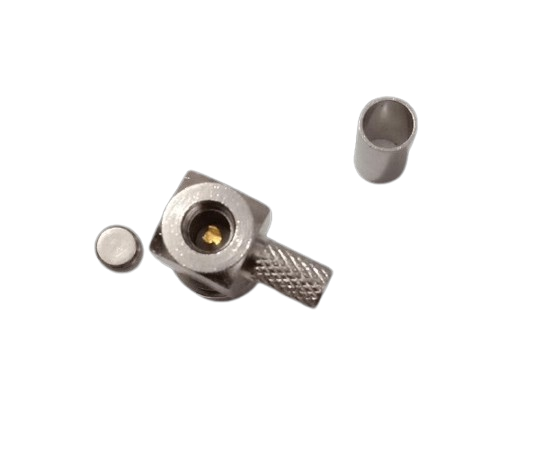

  • QMA M RA LMR 200 CRIMP is a male QMA connector with a right-angle (RA) design, intended for crimping onto LMR-200 coaxial cables.
  • “QMA” stands for Quick Mount Adapter, which is a type of RF connector known for its quick-locking mechanism and compact design.
  • “M” denotes that the connector is male, featuring external pins that mate with a female QMA connector.
  • “RA” indicates a right-angle design, which changes the direction of the cable connection by 90 degrees, making it suitable for applications with space constraints or specific routing requirements.
  • “LMR 200” specifies the coaxial cable type compatible with this connector. LMR-200 is known for its low-loss performance and durability.
  • “CRIMP” indicates that the connector is attached to the cable using a crimping method, which involves mechanically compressing the connector onto the cable’s conductors.
