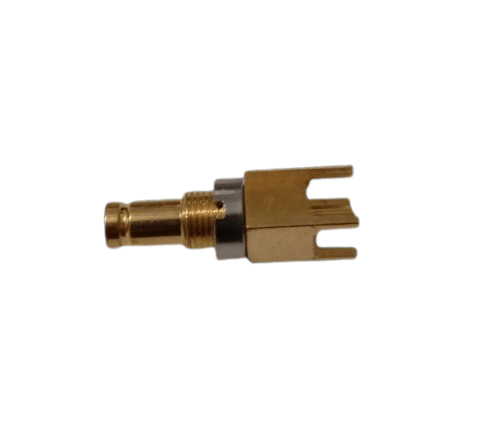

SAA F PCB SOLDER
- Connector Type:
- SAA Female PCB Solder: A female RF connector designed to be mounted on a PCB via soldering.
- Pin Configuration:
- Solder Pins: The connector typically features pins or leads that are designed to be soldered to the PCB. These pins connect the internal contacts of the connector to the circuit traces on the board.
- Material:
- Body: Usually made from durable materials such as brass or stainless steel, often with a metal plating (nickel or gold) to enhance durability and conductivity.
- Contacts: The internal contacts are typically made from high-conductivity metals and plated to ensure minimal signal loss and reliable performance.
- Mounting Type:
- PCB Mount: Designed to be mounted on a PCB. The connector pins are inserted through holes in the PCB and soldered in place.
- Impedance:
- 50 Ohms: The connector is generally designed for a 50-ohm impedance to match standard RF cables and ensure minimal signal reflection and loss.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, often effective up to several GHz, depending on the design.
- Installation:
- Soldering: The connector is attached to the PCB by inserting its pins through the PCB holes and soldering them to the board. This provides a secure and stable connection.
- Tools Required: Soldering iron and soldering supplies.
- Applications:
- Communication Systems: Used in RF communication systems such as antennas, transmitters, receivers, and other high-frequency equipment.
- Broadcasting: Suitable for broadcast equipment and other RF applications.
- Electronics: Commonly used in various electronic devices that require reliable RF connections.
₹120
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The SAA F PCB solder connector is a female connector designed for mounting on printed circuit boards (PCBs) using a solder connection. It provides a compact and stable connection, ideal for RF applications where space is limited. This connector is commonly used in communication devices, GPS modules, and other RF systems, offering durability and reliability in high-frequency environments. Its design ensures a strong solder joint, maintaining signal integrity and performance in PCB-mounted applications.
| Weight | 0.1 kg |
|---|
