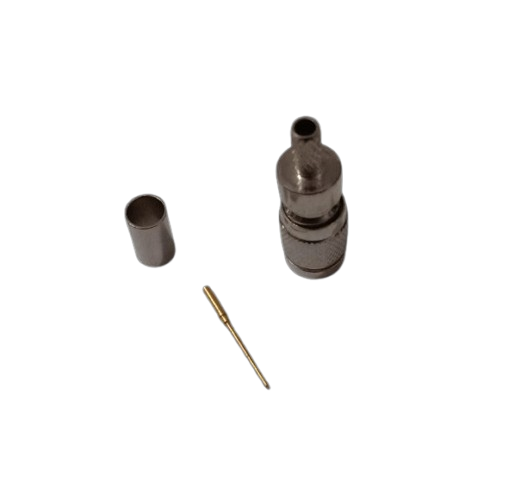

SAA M BT 3002 CRIMP

SAA M BT 3002 CRIMP

₹120

  1. Connector Type:
    • SAA Male BT 3002 Crimp: A male RF connector specifically designed for BT 3002 coaxial cables, using a crimping mechanism for attachment.
  2. Pin Configuration:
    • Crimp Pin: The connector includes a crimp pin that attaches to the center conductor of the BT 3002 cable. The crimping ensures a stable and reliable electrical connection.
  3. Material:
    • Body: Typically made from durable metals like brass or stainless steel, with additional plating (nickel or gold) to improve conductivity and resist corrosion.
    • Contacts: The pin is made from high-conductivity metal and is often plated to minimize signal loss and ensure reliable performance.
  4. Cable Compatibility:
    • BT 3002: Designed to fit BT 3002 coaxial cables, which are used in various RF applications. The connector is matched to the mechanical and electrical characteristics of this cable.
  5. Impedance:
    • 50 Ohms: The connector is generally designed for a 50-ohm impedance, which matches the impedance of the BT 3002 cable and helps maintain signal integrity.
  6. Frequency Range:
    • High Frequency: Suitable for high-frequency applications, often functioning effectively up to several GHz depending on the specific connector design.
  7. Installation:
    • Crimping: The connector is attached to the cable by crimping the cable’s center conductor and shield onto the connector. This process requires a crimping tool.
    • Tools Required: Crimping tool to secure the connector onto the cable.
  8. Applications:
    • Communication Systems: Commonly used in RF communication systems, including antennas, transmitters, receivers, and other high-frequency devices.
    • Broadcasting: Suitable for broadcast equipment where high-frequency signal transmission is needed.
    • General RF Applications: Ideal for various RF applications requiring robust and high-performance connections.
Categories: , , Tag:

The SAA M BT 3002 crimp connector is a male connector designed for use with BT 3002 cables. It features a crimp connection method, providing a secure and reliable fit for RF applications. This connector is ideal for use in communication devices, antennas, and other high-frequency systems where minimal signal loss and stable performance are essential. The crimp style allows for easy installation and ensures long-lasting durability in various RF communication setups. |

  • SAA M BT 3002 CRIMP is a male RF connector that features a crimping mechanism for connecting to BT 3002 coaxial cables. It is designed for high-frequency applications where reliable and secure connections are essential.
  • “SAA” refers to the series or type of RF connector known for its performance in various RF applications.
  • “M” denotes that the connector is male, meaning it has external pins that fit into a female connector.
  • “BT 3002” indicates that the connector is intended for use with BT 3002 coaxial cables.
  • “CRIMP” signifies that the connector uses a crimping method to attach to the cable.
Weight 0.1 kg
