SAA M LMR 100 CPS
- Connector Type:
- SAA Female PCB Solder: A female RF connector designed to be mounted on a PCB via soldering.
- Pin Configuration:
- Solder Pins: The connector typically features pins or leads that are designed to be soldered to the PCB. These pins connect the internal contacts of the connector to the circuit traces on the board.
- Material:
- Body: Usually made from durable materials such as brass or stainless steel, often with a metal plating (nickel or gold) to enhance durability and conductivity.
- Contacts: The internal contacts are typically made from high-conductivity metals and plated to ensure minimal signal loss and reliable performance.
- Mounting Type:
- PCB Mount: Designed to be mounted on a PCB. The connector pins are inserted through holes in the PCB and soldered in place.
- Impedance:
- 50 Ohms: The connector is generally designed for a 50-ohm impedance to match standard RF cables and ensure minimal signal reflection and loss.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, often effective up to several GHz, depending on the design.
- Installation:
- Soldering: The connector is attached to the PCB by inserting its pins through the PCB holes and soldering them to the board. This provides a secure and stable connection.
- Tools Required: Soldering iron and soldering supplies.
- Applications:
- Communication Systems: Used in RF communication systems such as antennas, transmitters, receivers, and other high-frequency equipment.
- Broadcasting: Suitable for broadcast equipment and other RF applications.
- Electronics: Commonly used in various electronic devices that require reliable RF connections.
Advantages
- Reliable Connection: Soldering ensures a strong, stable connection to the PCB, which is crucial for maintaining signal integrity in high-frequency applications.
- Durable Construction: Made from high-quality materials to withstand mechanical stress and environmental conditions.
- High-Frequency Performance: Designed to handle high-frequency signals with minimal loss and interference.
₹120
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.

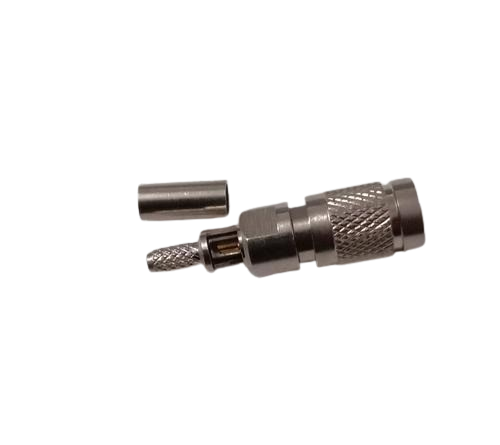

The SAA M LMR 100 CPS connector is a male connector compatible with LMR 100 cables, featuring a captive pin style (CPS) connection. This design ensures a secure and precise fit, making it suitable for RF applications requiring high reliability and minimal signal loss. The CPS style allows for easy handling and installation, ensuring stable performance in communication devices, antennas, and other high-frequency systems. The connector offers durability and long-lasting performance, meeting the demands of various RF communication setups. |
- SAA F PCB Solder is a female RF connector that is intended to be soldered onto a printed circuit board (PCB). This type of connector is designed for high-frequency applications where a reliable and stable connection is essential.
- “SAA” refers to a series or type of RF connectors known for their performance and reliability.
- “F” indicates that the connector is female, meaning it has internal contacts that accept a male connector.
- “PCB” signifies that the connector is designed for mounting directly onto a printed circuit board.
- “Solder” indicates that the connector is attached to the PCB using soldering techniques.
