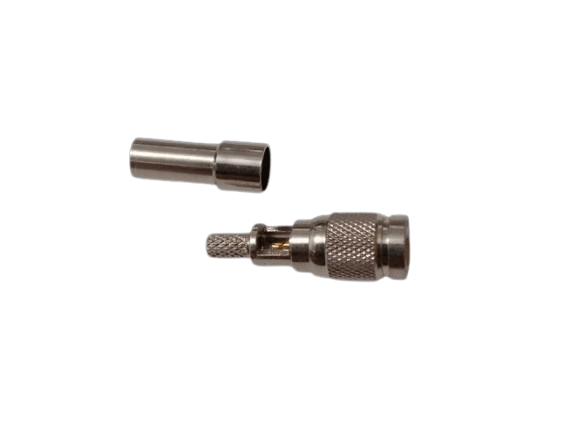

SAA M LMR 240 CPS
- Connector Type:
- SAA Male LMR 240 CPS: A male RF connector designed for LMR-240 coaxial cables, utilizing a compression fitting mechanism for attachment.
- Pin Configuration:
- Compression Pin: The connector features a compression pin that securely attaches to the center conductor of the LMR-240 cable. The compression fitting ensures a stable and reliable electrical connection.
- Material:
- Body: Typically made from durable metals such as brass or stainless steel, often with plating like nickel or gold to improve conductivity and resist corrosion.
- Contacts: The internal contacts are generally made from high-conductivity metals and may be plated to minimize signal loss.
- Cable Compatibility:
- LMR-240: Designed specifically for use with LMR-240 coaxial cables, which have certain mechanical and electrical properties suited for high-frequency applications.
- Impedance:
- 50 Ohms: The connector is usually designed for a 50-ohm impedance, matching the LMR-240 cable to ensure minimal signal reflection and optimal performance.
- Frequency Range:
- High Frequency: Suitable for high-frequency applications, typically effective up to several GHz depending on the connector design.
- Installation:
- Compression Fitting: The connector is attached to the cable using a compression fitting mechanism. This involves compressing a metal ferrule around the cable to create a secure and stable connection.
- Tools Required: A compression tool is needed to install the connector properly.
- Applications:
- Communication Systems: Used in RF communication systems including antennas, transmitters, receivers, and other high-frequency equipment.
- Broadcasting: Suitable for broadcast equipment where reliable and high-performance signal transmission is needed.
- General RF Applications: Ideal for various RF applications requiring robust and high-performance connections.
₹120
⚡ 🚚 Lightning Fast Delivery in 4-7 Business Days – Pan India
💸 Cash On Delivery Available
💰 Lowest Prices
The prices on our website are the lowest. Don’t trust us, compare it with Amazon or Flipkart immediately. If you ever find our prices higher than any website, let us match it for you.
The SAA M LMR 240 CPS connector is a male connector designed for LMR 240 cables, featuring a captive pin style (CPS) connection. This design provides a secure and precise attachment, making it suitable for RF applications where high reliability and minimal signal loss are required. The CPS style facilitates easy handling and installation, ensuring stable performance in communication devices, antennas, and other high-frequency systems. The connector is known for its durability and long-lasting performance in demanding RF communication environments. |
- SAA M LMR 240 CPS is a male RF connector specifically designed to interface with LMR-240 coaxial cables. It features a compression fitting mechanism, which is used to secure the connector to the cable.
- “SAA” denotes the connector series or type, known for its performance in RF applications.
- “M” indicates that the connector is male, meaning it has external pins that mate with female connectors.
- “LMR 240” refers to the compatibility with LMR-240 coaxial cables, which are used in various RF applications.
- “CPS” stands for “Compression”, which indicates that the connector uses a compression fitting method to attach to the cable.
| Weight | 0.1 kg |
|---|
