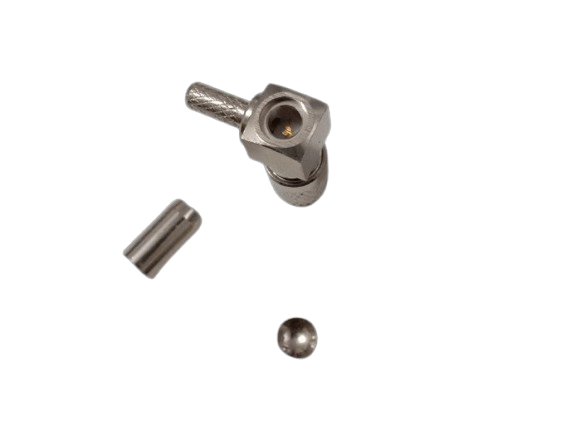

SAA M RA BT 3002 CRIMP

SAA M RA BT 3002 CRIMP

₹120

  1. Connector Type:
    • SAA Male RA BT 3002 Crimp: A male right-angle RF connector designed for BT 3002 coaxial cables, utilizing a crimping mechanism for attachment.
  2. Pin Configuration:
    • Crimp Pin: The connector features a crimp pin that attaches to the center conductor of the BT 3002 cable. The crimping process ensures a stable and reliable electrical connection.
  3. Material:
    • Body: Typically made from durable metals such as brass or stainless steel, often plated with nickel or gold for improved conductivity and corrosion resistance.
    • Contacts: The pin is generally made from high-conductivity metal and may be plated to reduce signal loss and ensure reliable performance.
  4. Cable Compatibility:
    • BT 3002: Designed to fit BT 3002 coaxial cables, which are used in various RF applications with specific mechanical and electrical characteristics.
  5. Impedance:
    • 50 Ohms: The connector is typically designed for a 50-ohm impedance, matching the BT 3002 cable to ensure minimal signal reflection and optimal performance.
  6. Frequency Range:
    • High Frequency: Suitable for high-frequency applications, typically effective up to several GHz, depending on the connector design.
  7. Installation:
    • Crimping: The connector is attached to the cable by crimping the cable’s center conductor and shield onto the connector using a crimping tool.
    • Right-Angle Design: The right-angle design allows for connections in tight spaces or where space constraints are a concern.
    • Tools Required: Crimping tool is necessary for proper installation.
  8. Applications:
    • Communication Systems: Used in RF communication systems, including antennas, transmitters, receivers, and other high-frequency equipment.
    • Broadcasting: Suitable for broadcast equipment where reliable and high-performance signal transmission is needed.
    • General RF Applications: Ideal for various RF applications requiring a compact and robust connection.
Categories: , , Tag:

The SAA M RA BT 3002 crimp connector is a right-angle male connector designed for use with BT 3002 cables. It features a crimp connection method, providing a secure and reliable fit in RF applications where an angled connection is necessary. This connector is ideal for use in communication devices, antennas, and other high-frequency systems, offering stability and minimal signal loss. The right-angle design allows for easy installation in tight spaces, ensuring durable and long-lasting performance. |

  • SAA M RA BT 3002 CRIMP is a male right-angle RF connector specifically designed to interface with BT 3002 coaxial cables. It uses a crimping method to secure the connector to the cable.
  • “SAA” refers to the connector series known for high performance and reliability in RF applications.
  • “M” denotes that the connector is male, meaning it has external pins or threads that mate with female connectors.
  • “RA” stands for “Right-Angle,” indicating that the connector has a 90-degree angle, allowing for a compact connection in tight spaces.
  • “BT 3002” indicates compatibility with BT 3002 coaxial cables.
  • “CRIMP” indicates that the connector uses a crimping mechanism for attaching to the cable.
Weight 0.1 kg
